Components [08/2019 - ]
WARNING: This page is about a different variant/trim than selected.

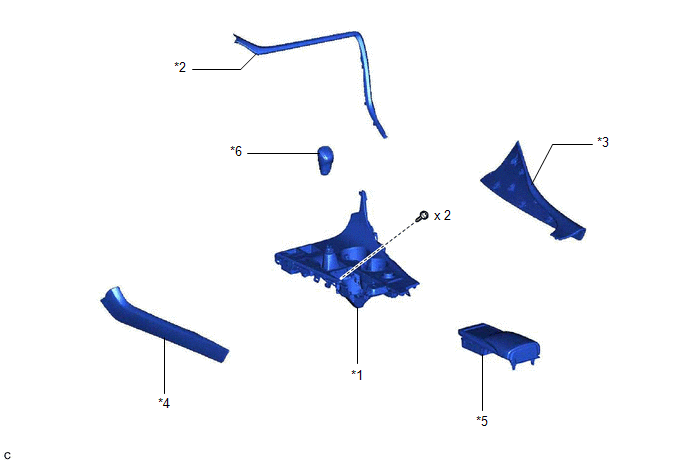

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
CONSOLE PANEL SUB-ASSEMBLY |
*2 |
INSTRUMENT CLUSTER FINISH PANEL ORNAMENT |
| *3 |
LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL |
*4 |
LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL |
| *5 |
REAR CONSOLE UPPER PANEL |
*6 |
SHIFT LEVER KNOB SUB-ASSEMBLY |

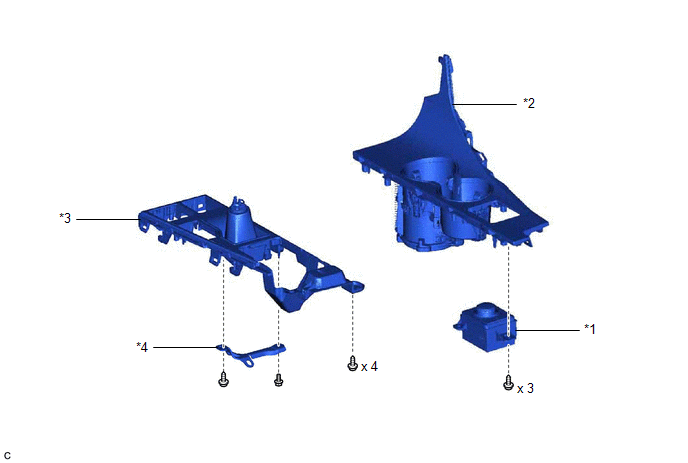

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
AWD LOCK SWITCH (COMBINATION SWITCH ASSEMBLY) |
*2 |
CONSOLE BOX ORNAMENT |
| *3 |
SHIFTING HOLE FRAME SUB-ASSEMBLY |
*4 |
CONSOLE BOX BRACKET |
