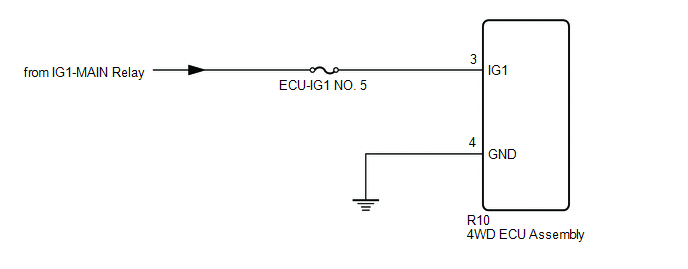

DTC C120C/79: Linear Solenoid Power Supply System Malfunction [09/2015 - 08/2019]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY654599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
