Brake Control System - Service Information
>>
Steering Angle Sensor
>>
Components [09/2015 - 08/2016]
Components [09/2015 - 08/2016]

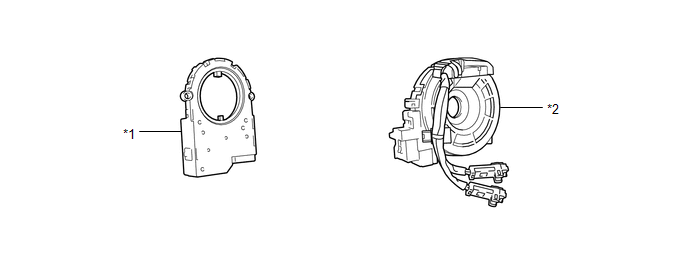

Fig 1: Steering Angle Sensor Replacement Components [09/2015 - 08/2016]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
STEERING SENSOR
*2
SPIRAL CABLE SUB-ASSEMBLY
