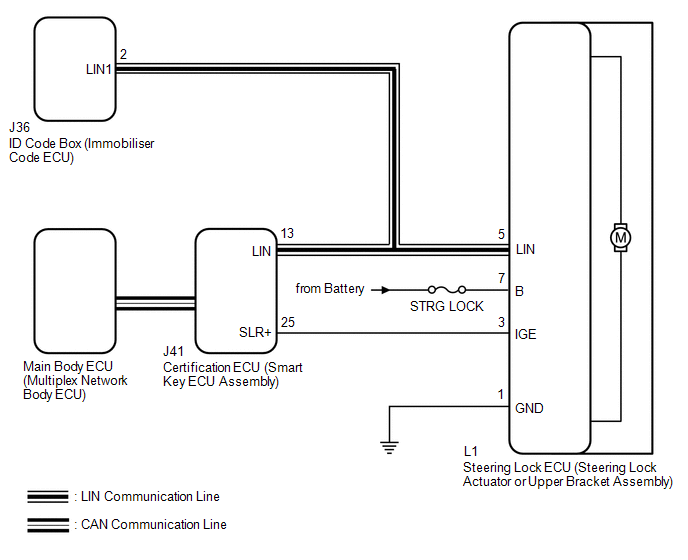

Steering Lock does not Lock [09/2015 - ]: Wiring Diagram

GTY677707

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
