Installation [08/2016 - 08/2019]: Procedure

INSTALL STEERING VIBRATION AND HEATER ECU
See step 1
INSTALL NO. 1 SWITCH WIRE (w/ Shift Paddle Switch)
for U881F: Refer to PROCEDURE - Step 1

for U881E: Refer to PROCEDURE - Step 1
INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) (w/ Shift Paddle Switch)
for U881F: Refer to PROCEDURE - Step 2

for U881E: Refer to PROCEDURE - Step 2
INSTALL LOWER NO. 1 STEERING WHEEL BOSS COVER (w/ Shift Paddle Switch)
for U881F: Refer to PROCEDURE - Step 3

for U881E: Refer to PROCEDURE - Step 3
INSTALL STEERING PAD SWITCH ASSEMBLY
See step 1
INSTALL CRUISE CONTROL MAIN SWITCH
Refer to PROCEDURE - Step 1
ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 7

INSTALL STEERING WHEEL ASSEMBLY

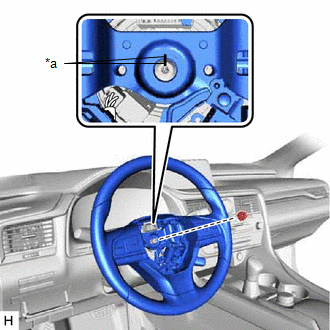

Align the matchmarks on the steering wheel assembly and steering main shaft to install the steering wheel assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Matchmark

Install the steering wheel assembly set nut.
Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
Connect each connector to the spiral cable with sensor sub-assembly.
