Removal [09/2015 - 08/2016]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [09/2015 - 08/2016]

  2. REMOVE STEERING PAD SWITCH ASSEMBLY

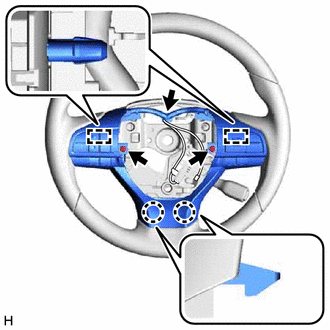

    1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.
      GTY677817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Disengage the 2 claws and 2 pins to remove the steering pad switch assembly.
