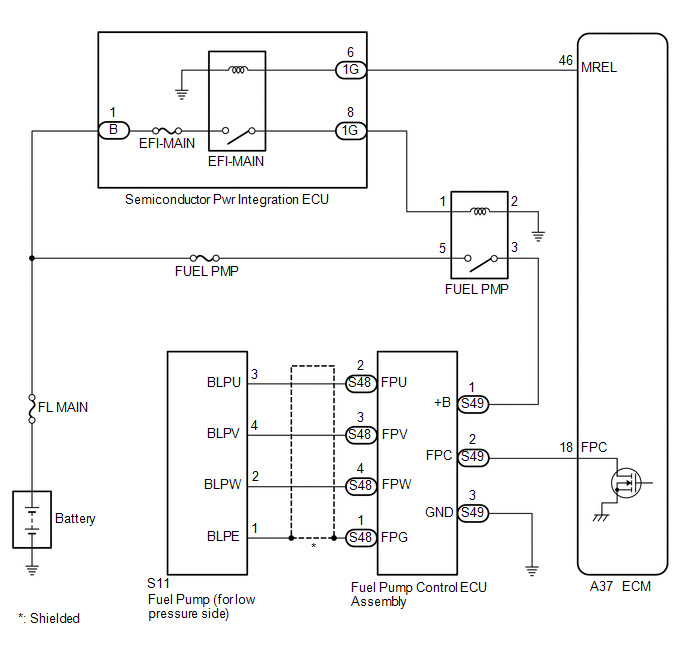

Fuel Pump Control Circuit [09/2015 - 12/2017]: Wiring Diagram

GTY637041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
