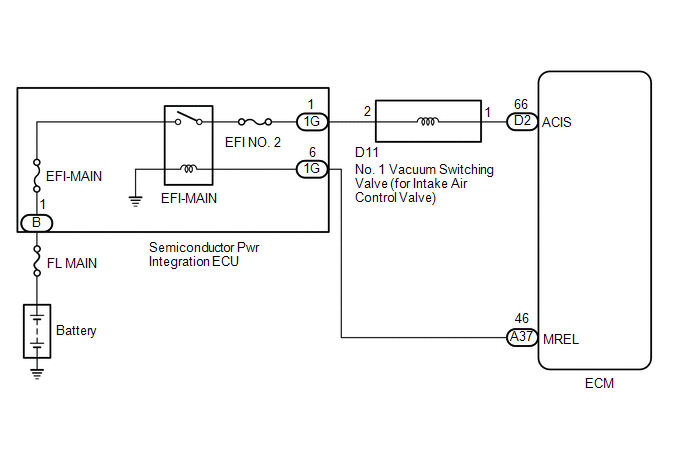

ACIS Control Circuit [09/2015 - ]: Wiring Diagram

GTY647295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
