Active Control Engine Mount System [09/2015 - ]: Description

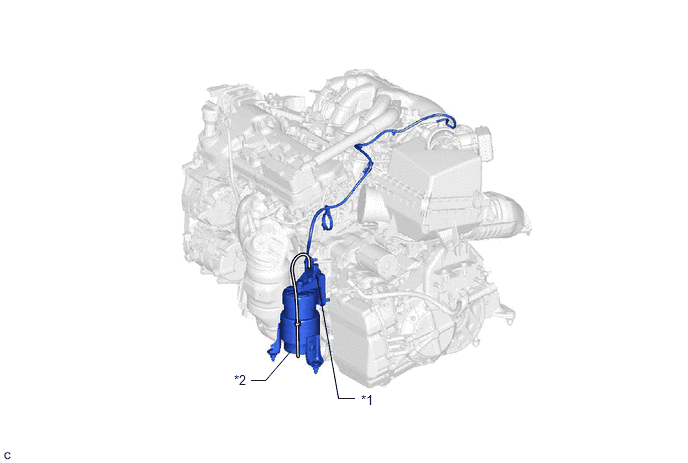

LOCATION
| *1 | No. 2 Vacuum Switching Valve Assembly (for Active Control Engine Mount) | *2 | Front Engine Mounting Insulator Assembly |
The active control engine mount system decreases engine vibration at a low engine speed using the No. 2 vacuum switching valve assembly (for active control engine mount). The No. 2 vacuum switching valve assembly (for active control engine mount) is controlled by a pulse signal transmitted to the No. 2 vacuum switching valve assembly (for active control engine mount) from the ECM. The frequency of this pulse signal is matched to the engine speed to decrease engine vibration.
