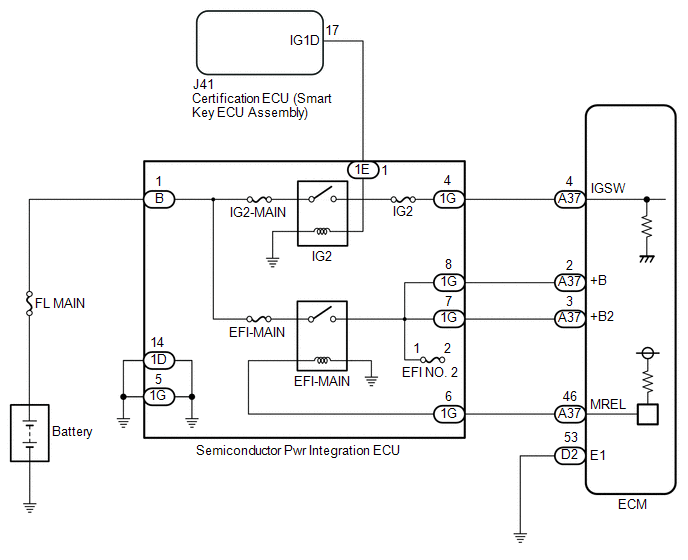

ECM Power Source Circuit [09/2015 - ]: Wiring Diagram

GTY631421

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
