Removal [08/2016 - 08/2019]: Procedure

Refer to REMOVAL [08/2016 - 12/2017] , or refer to REMOVAL [12/2017 - 08/2019]

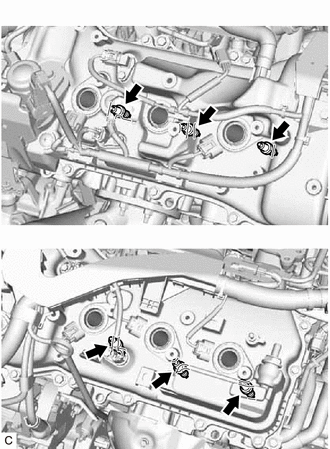

1. Disconnect the 6 ignition coil assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

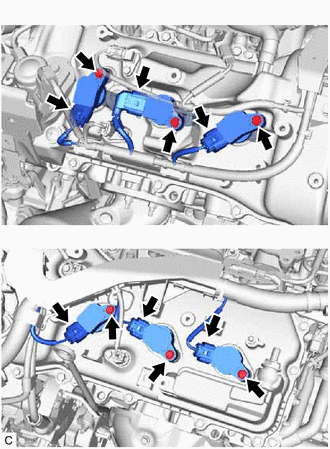

2. Remove the 6 bolts and 6 ignition coil assemblies from the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH.
   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.

1. Remove the 6 spark plugs from the cylinder head sub-assembly and cylinder head LH.
   NOTE:

   If a spark plug has been struck or dropped, replace it.

   HINT:

   Arrange the removed parts in the correct order.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
