Removal [08/2016 - 08/2019]: Procedure

PRECAUTION
NOTE:
- Perform Vehicle Identification Number (VIN) registration when replacing the ECM.
  Refer to REGISTRATION [09/2015 - ]
- Before replacing the ECM, refer to Registration.
  Refer to REGISTRATION [09/2015 - 08/2019]
- If the ECM has been struck or dropped, replace it.
- After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
  Refer to PRECAUTION [09/2015 - 12/2017] , or refer to PRECAUTION [12/2017 - 08/2019]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [08/2016 - 12/2017] , or refer to INITIALIZATION [12/2017 - 08/2019]
REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1

REMOVE ECM

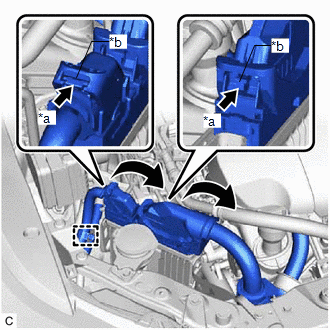

Raise the 2 levers while pushing the locks on the levers, and disconnect the 2 ECM connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Push
*b	Lock

NOTE:

After disconnecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.

Disengage the wire harness clamp.

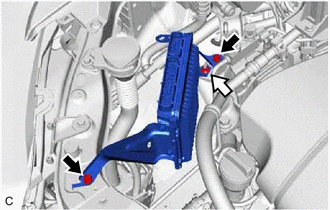

Remove the 2 bolts and nut to remove the ECM.

NOTE:

If the ECM has been struck or dropped, replace it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Bolt
	Nut

REMOVE NO. 1 ECM BRACKET

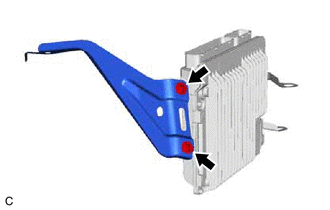

Remove the 2 bolts and No. 1 ECM bracket from the ECM.

REMOVE NO. 2 ECM BRACKET

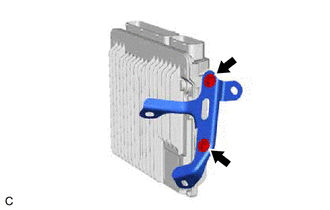

Remove the 2 bolts and No. 2 ECM bracket from the ECM.
