Removal [09/2015 - ]: Procedure

  1. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)

    Refer to REMOVAL [09/2015 - ]

  2. REMOVE CRANKSHAFT POSITION SENSOR PROTECTOR
    1. w/ oil cooler:

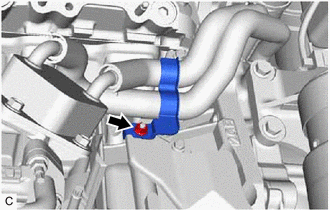

      1. Remove the nut and hose clamp from the crankshaft position sensor protector.
        GTY682744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

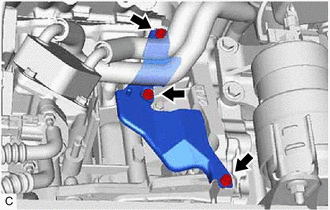

    2. Remove the 3 bolts and crankshaft position sensor protector from the cylinder block sub-assembly and oil pan sub-assembly.
      GTY658050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CRANKSHAFT POSITION SENSOR

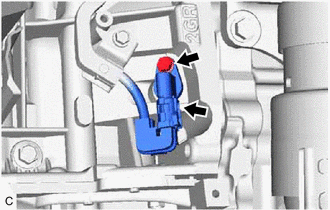

    1. Disconnect the crankshaft position sensor connector.
      GTY659003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
      NOTE:

      If the crankshaft position sensor has been struck or dropped, replace it.
