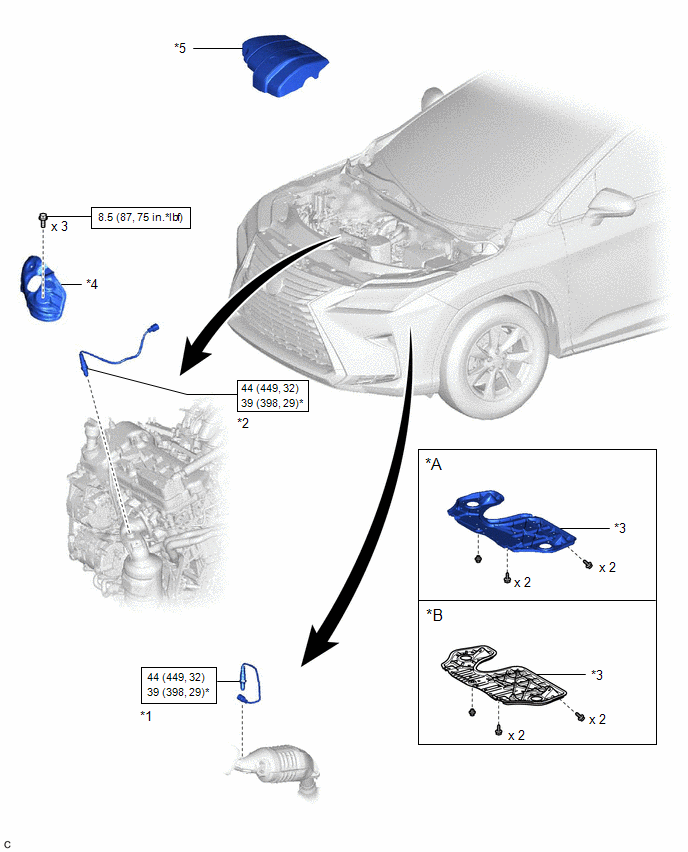

Components [09/2015 - ]
| Callout | Description | Callout | Description |
| *A | for TMC Made | *B | for TMMC Made |
| *1 | AIR FUEL RATIO SENSOR (for Bank 1) | *2 | AIR FUEL RATIO SENSOR (for Bank 2) |
| *3 | NO. 2 ENGINE UNDER COVER | *4 | NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
| *5 | V-BANK COVER SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST |
