Removal [09/2015 - ]: Procedure

REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 9 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 9 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 9 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]
REMOVE COWL SIDE TRIM BOARD
Refer to PROCEDURE - Step 3 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 3 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 7 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 7 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 7 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY

NOTE:

Avoid physical shock to the accelerator pedal sensor assembly.
Do not disassemble the accelerator pedal sensor assembly.
The accelerator pedal sensor assembly does not require lubrication.
Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.

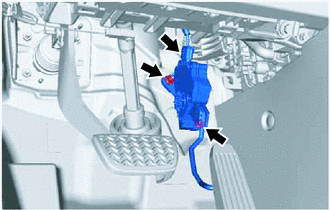

Disconnect the accelerator pedal sensor assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 nuts and accelerator pedal sensor assembly.
NOTE:
If the accelerator pedal sensor assembly has been struck or dropped, replace it.
Separate the rod of the accelerator pedal sensor assembly from the accelerator pedal assembly to remove the accelerator pedal sensor assembly.

REMOVE ACCELERATOR PEDAL PAD

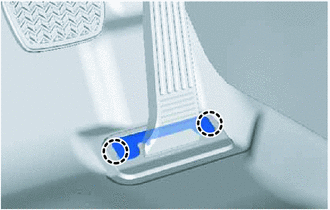

Disengage the 2 claws and remove the accelerator pedal pad.

REMOVE ACCELERATOR PEDAL

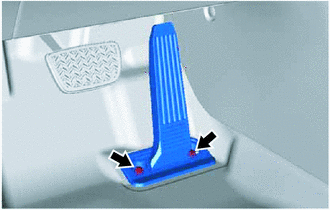

Remove the 2 bolts and accelerator pedal.
