DTC B2439: Headlight LH Circuit; DTC B243A: Headlight RH Circuit [03/2019 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus RC F, 2023 Lexus RC F, 2022 Lexus RC F, 2021 Lexus RC F, and 2020 Lexus RC F. However, it is still accessible from the selected car via links, so may be relevant.

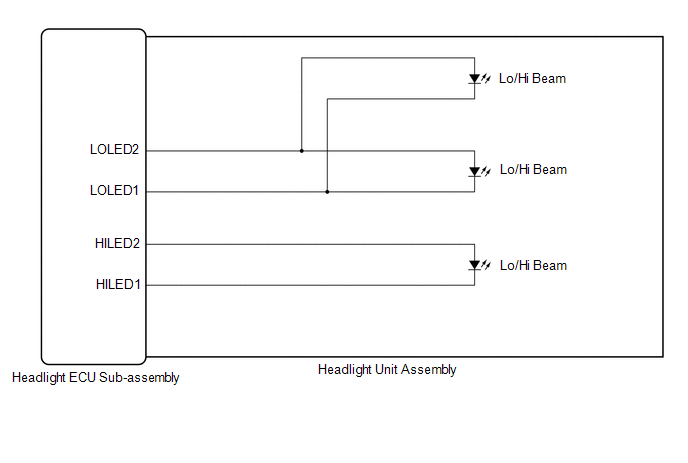

  1. for Triple Beam Headlight
    GTY961023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

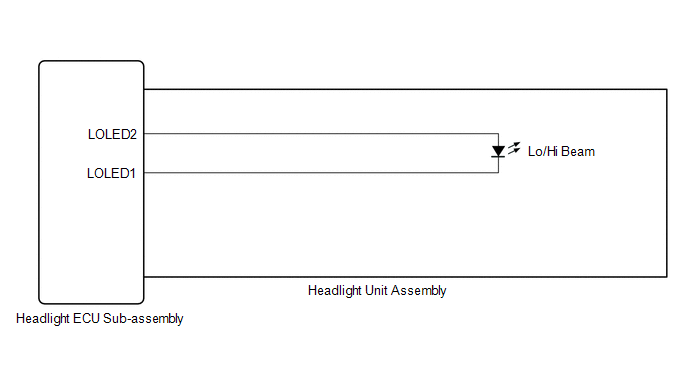

  2. for Single Beam Headlight
    GTY959928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
