Lighting System (Ext) - Service Information
>>
High Mounted Stop Light Assembly
>>
Components [09/2014 - ]
Components [09/2014 - ]

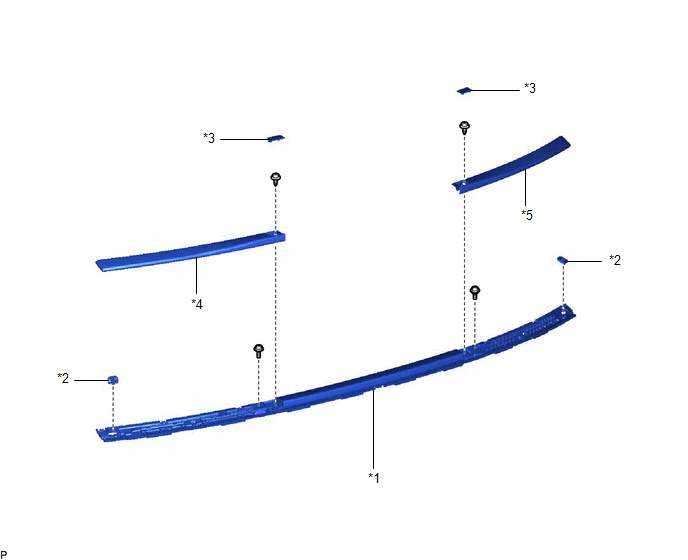

Fig 1: High Mounted Stop Light Assembly Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CENTER STOP LIGHT ASSEMBLY
*2
CENTER STOP LIGHT CLIP
*3
CENTER STOP LIGHT COVER
*4
NO. 2 CENTER STOP LIGHT COVER LH
*5
NO. 2 CENTER STOP LIGHT COVER RH
-
-
