Engine Room Relay Block Assembly and Engine Room Junction Block No. 1 Assembly Inner Circuit

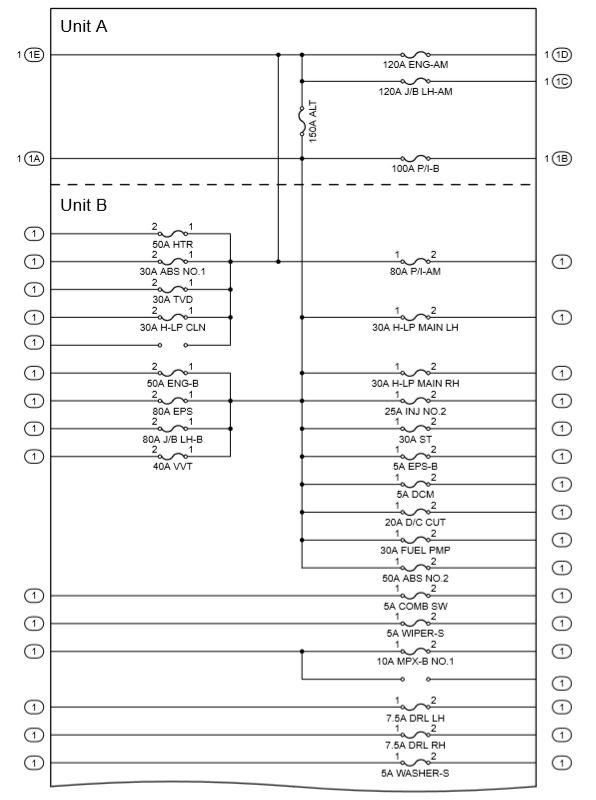

Fig 1: Engine Room R/B And J/B Assembly No. 1 Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

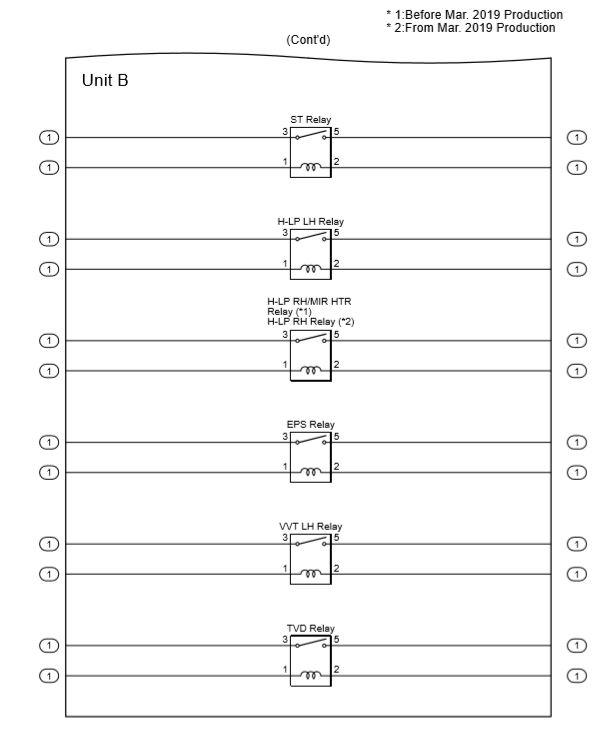

Fig 2: Engine Room R/B And J/B Assembly No. 1 Circuit Diagram (2 Of 2) With Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 1 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
ST Relay
H-LP LH Relay
H-LP RH Relay
MIR HTR Relay
EPS Relay
VVT LH Relay
TVD Relay
