System Diagram [03/2019 - ]

  1. WIPER SYSTEM

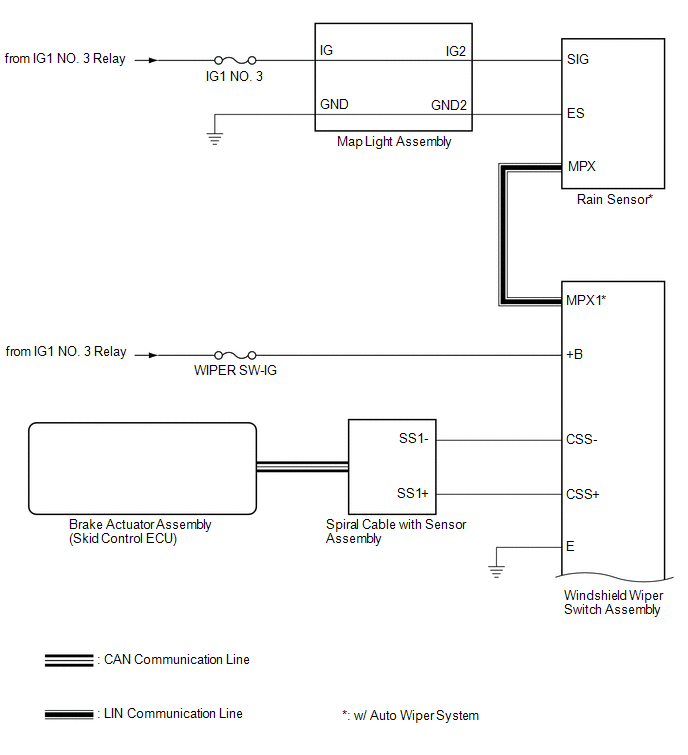

    Fig 1: Wiper System Diagram (1 of 2)
    GTY960692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

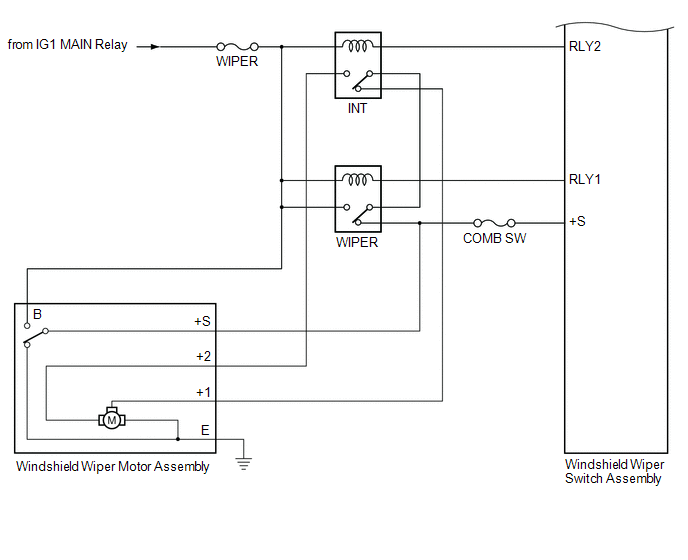

    Fig 2: Wiper System Diagram (2 of 2)
    GTY961445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. WASHER SYSTEM AND HEADLIGHT CLEANER SYSTEM (w/ Headlight Cleaner System)

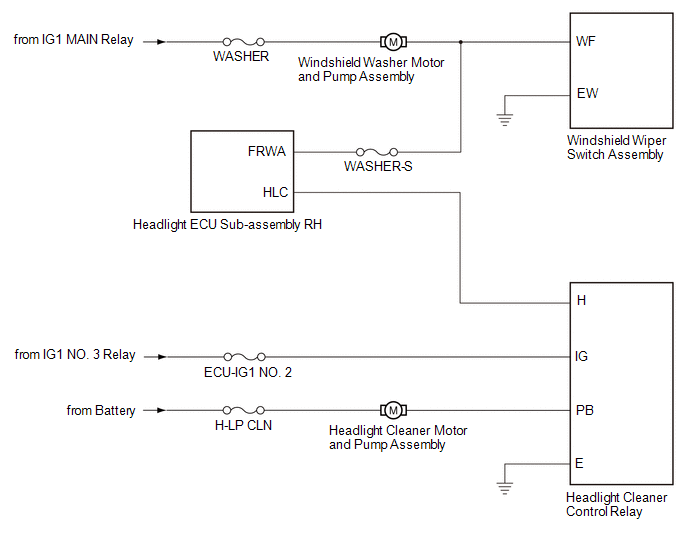

    Fig 3: Washer System And Headlight Cleaner System Diagram (W/ Headlight Cleaner System)
    GTY961037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. WASHER FLUID LEVEL WARNING SYSTEM

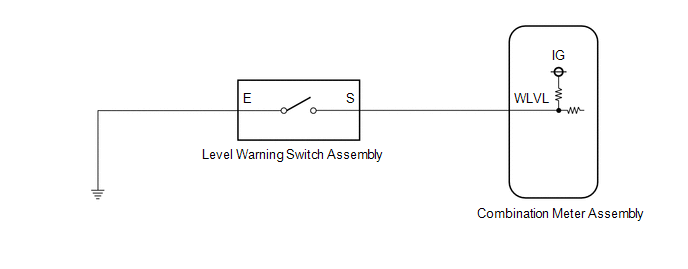

    Fig 4: Washer Fluid Level Warning System Diagram
    GTY777326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
