USB Audio System Recognition/Play Error [09/2014 - 11/2017]: Procedure

1. Disconnect the USB device or "iPod" from the No. 1 stereo jack adapter assembly.
2. Check if playable files are present on the USB device or "iPod".

   HINT:

   Refer to System Description for playable files.

   Refer to SYSTEM DESCRIPTION [09/2014 - 11/2017]

3. Check if the USB device is a compatible format or "iPod" is a compatible version.

   HINT:

   Refer to System Description for compatible formats and versions.

   Refer to SYSTEM DESCRIPTION [09/2014 - 11/2017]

   Result

   Result	Proceed to
   No playable files exist, or incompatible device format or version.	A
   Playable files exist, and compatible device format or version.	B

Result:

A

USB DEVICE FORMAT WAS INCOMPATIBLE, "iPod" VERSION WAS INCOMPATIBLE, OR NO PLAYABLE FILES PRESENTED

Result:

B

See step  2

1. Disconnect the O140 radio receiver assembly connector.
2. Disconnect the O128 No. 1 stereo jack adapter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

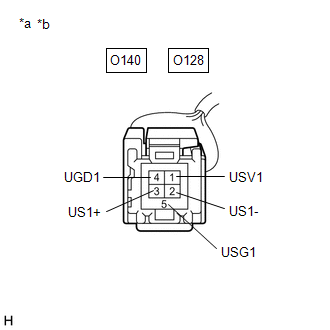

   *a	Front view of wire harness connector (to Radio Receiver Assembly)
   *b	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O128-1 (USV1) - O140-1 (USV1)	Always	Below 1 Ω
   O128-2 (US1-) - O140-2 (US1-)	Always	Below 1 Ω
   O128-3 (US1+) - O140-3 (US1+)	Always	Below 1 Ω
   O128-4 (UGD1) - O140-4 (UGD1)	Always	Below 1 Ω
   O128-5 (USG1) - O140-5 (USG1)	Always	Below 1 Ω
   O128-1 (USV1) - Body ground	Always	10 kΩ or higher
   O128-2 (US1-) - Body ground	Always	10 kΩ or higher
   O128-3 (US1+) - Body ground	Always	10 kΩ or higher
   O128-4 (UGD1) - Body ground	Always	10 kΩ or higher
   O128-5 (USG1) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Disconnect the O59 radio receiver assembly connector.
2. Disconnect the O66 No. 1 stereo jack adapter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O59-12 (+B) - O66-6 (+B)	Always	Below 1 Ω
   O59-7 (GND2) - O66-5 (GND)	Always	Below 1 Ω
   O59-12 (+B) - Body ground	Always	10 kΩ or higher
   O59-7 (GND2) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Reconnect the O140 and O59 radio receiver assembly connectors.
2. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

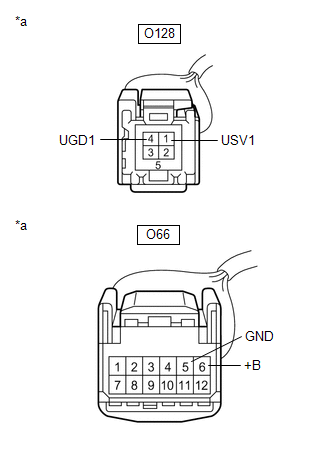

   *a	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   O128-1 (USV1) - O128-4 (UGD1)	Engine switch on (ACC)	5 V
   O66-6 (+B) - O66-5 (GND)	Always	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE RADIO RECEIVER ASSEMBLY. Refer to  REMOVAL [09/2014 - 11/2017]

Result:

OK

See step  5

1. Delete all files in the USB device or "iPod" and format/restore it.
2. Save the data again and check if it can be played on the in-vehicle device.
   NOTE:

   Formatting a USB device or restoring an "iPod" erases all music on the device. Ensure that backup music data is available before performing this operation.

   OK

   Malfunction disappears.

   Result

   Proceed to
   OK
   NG

Result:

OK

END

Result:

NG

See step  6

1. Turn the engine switch off.

   HINT:

   When this malfunction occurs, it is necessary to turn the engine switch off to make it possible for the vehicle to recognize a new device when it is connected.

2. Turn the engine switch on (ACC).
3. Connect a known good USB device or "iPod" to the No. 1 stereo jack adapter assembly.

   HINT:

   • If the malfunction occurred when a USB device was in use, use another USB device for the inspection. If the malfunction occurred when an "iPod" was in use, use another "iPod" for the inspection.
   • Refer to System Description for compatible formats and versions.

     Refer to SYSTEM DESCRIPTION [09/2014 - 11/2017]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  7

1. Check if a USB device or "iPod" is recognized by the radio receiver assembly, and if information such as track, artist and album names is displayed on the screen.

   OK

   USB device or "iPod" is recognized properly and the information is displayed on the screen.

   Result

   Proceed to
   OK
   NG

Result:

OK

USB DEVICE OR "iPod" WAS INCOMPATIBLE OR DEFECTIVE

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [09/2014 - 11/2017]
