Vehicle Identification And Serial Numbers [11/2017 - ]

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.
      GTY506870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Certification Label
      *b Vehicle Identification Number
  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER

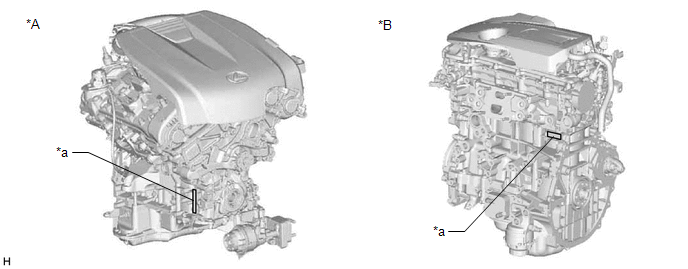

    1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.
      GTY817535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A 2GR-FKS *B 8AR-FTS
      *a Engine Serial Number - -
    2. The transmission serial number is stamped on the transmission case as shown in the illustration.
      GTY659731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A AA81E *B A760H
      *a Transmission Serial Number - -
