Parts Location [09/2014 - ]: Illustration

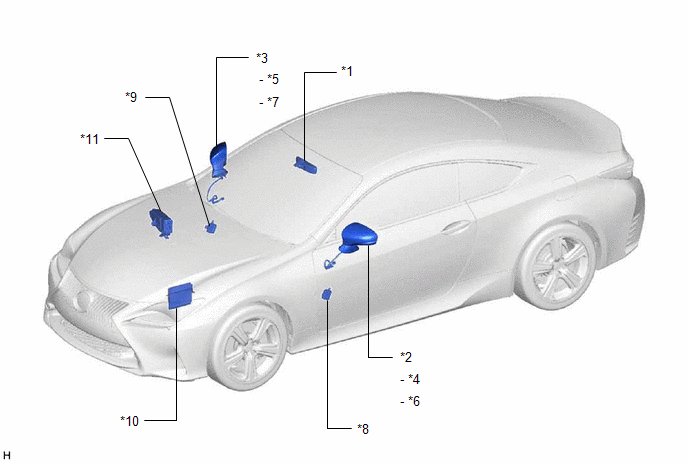

| *1 | INNER REAR VIEW MIRROR ASSEMBLY | *2 | OUTER REAR VIEW MIRROR ASSEMBLY (DRIVER DOOR) |
| *3 | OUTER REAR VIEW MIRROR ASSEMBLY (FRONT PASSENGER DOOR) | *4 | OUTER MIRROR (DRIVER DOOR) |
| *5 | OUTER MIRROR (FRONT PASSENGER DOOR) | *6 | OUTER MIRROR ACTUATOR ASSEMBLY (DRIVER DOOR) |
| *7 | OUTER MIRROR ACTUATOR ASSEMBLY (FRONT PASSENGER DOOR) | *8 | OUTER MIRROR CONTROL ECU ASSEMBLY (DRIVER DOOR) |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY (FRONT PASSENGER DOOR) | *10 | ECM |
| *11 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE |
- | - |

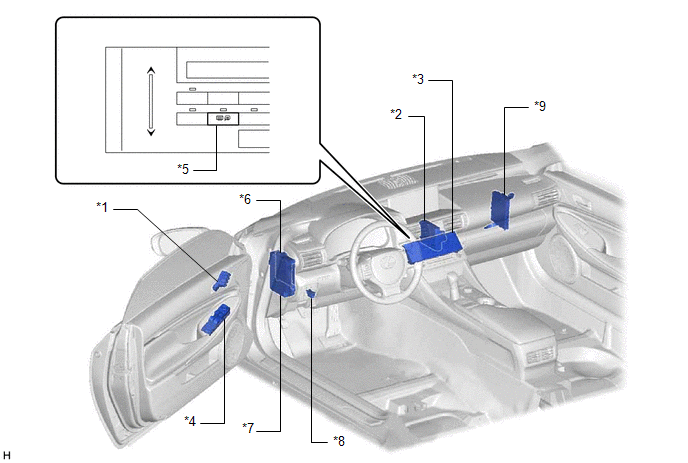

| *1 | SEAT MEMORY SWITCH | *2 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *3 | AIR CONDITIONING CONTROL ASSEMBLY | *4 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY |
| *5 | MIRROR HEATER SWITCH (REAR WINDOW DEFOGGER SWITCH) | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR F/R FUSE - DOOR F/L FUSE - ECU-IG1 NO. 1 FUSE |
*8 | DLC3 |
| *9 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | - | - |
