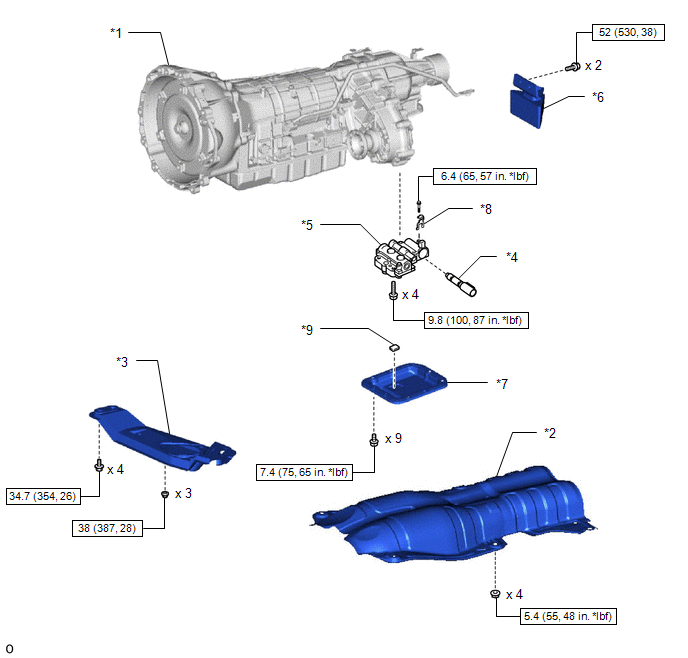

Components [09/2014 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY | *2 | FRONT NO. 1 FLOOR HEAT INSULATOR |
| *3 | REAR ENGINE MOUNTING MEMBER | *4 | TRANSFER CONTROL SOLENOID ASSEMBLY |
| *5 | TRANSFER CONTROL VALVE BODY ASSEMBLY | *6 | TRANSFER DYNAMIC DAMPER |
| *7 | TRANSFER OIL PAN SUB-ASSEMBLY | *8 | SOLENOID LOCK PLATE |
| *9 | TRANSFER OIL CLEANER MAGNET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
