Components [09/2014 - ]

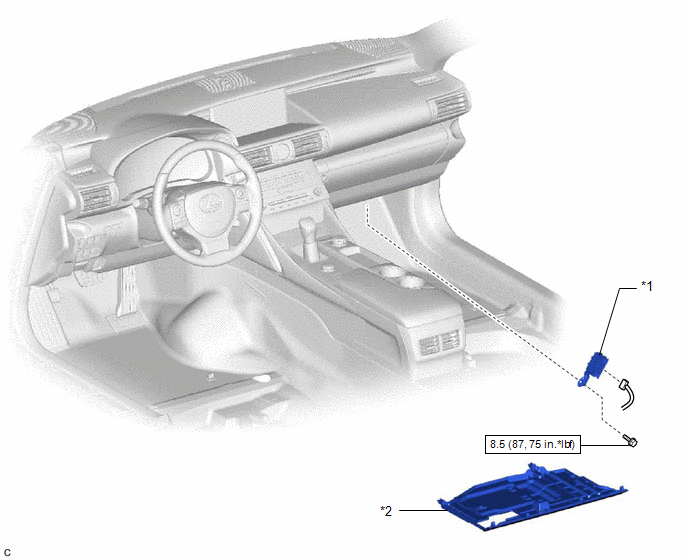

Fig 1: 4WD Control ECU Replacement Components With Torque Specifications
GTY506611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 4WD ECU ASSEMBLY *2 NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
