Parts Location [09/2014 - 10/2022]: Illustration

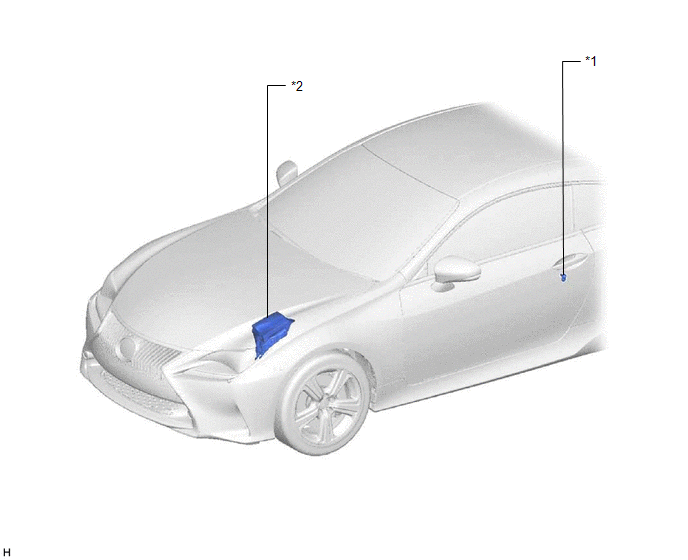

| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *2 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - IG2 RELAY - IG2-MAIN FUSE |

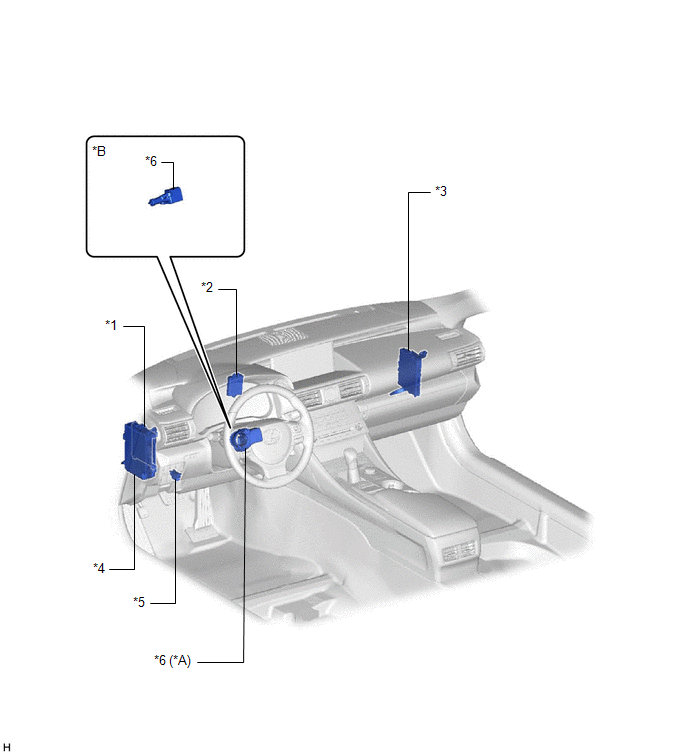

| *A | for Manual Tilt and Manual Telescopic Steering Column | *B | for Power Tilt and Power Telescopic Steering Column |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | ID CODE BOX (IMMOBILISER CODE ECU) |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IGN NO. 2 FUSE - STRG LOCK FUSE |
| *5 | DLC3 | *6 | STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) |
