Installation [09/2014 - ]: Procedure

  1. INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY
    1. Connect the steering sliding yoke sub-assembly to the steering actuator assembly.
      NOTE:

      Align the matchmarks on the steering sliding yoke sub-assembly and steering actuator assembly.

      GTY511762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Temporarily install the bolt.
  2. HANDLING PRECAUTIONS FOR STEERING ACTUATOR ASSEMBLY
    NOTE:
    • Make sure that the No. 2 seal lip and boot do not turn outward while carrying or installing the steering actuator assembly.
    • If installing a new steering actuator assembly, make sure that the spiral center lock pin is securely inserted.
    • Do not use the steering actuator assembly if it has been dropped.
    GTY465943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Spiral Case *b Sliding Yoke
    *c Actuator Clamp *d Boot
    *e No. 2 Seal Lip - -
  3. INSTALL STEERING ACTUATOR ASSEMBLY
    1. If installing a new steering actuator assembly:
      1. Make sure that the front wheels are facing straight ahead.
        GTY468787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Center Lock Pin
        *b White Paint
      2. Install a new steering actuator assembly with the white paint on the surface of the spiral case facing downward.
        NOTE:

        Do not pull out the center lock pin.

    2. If reinstalling the removed steering actuator assembly:
      1. Make sure that the front wheels are facing straight ahead.
        GTY461631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Slit
        *b Alignment Mark
        *c Sliding Yoke
        *d White Paint
      2. Slowly turn the spiral case clockwise until it locks.
      3. Turn the spiral case two turns counterclockwise from the locked position.
      4. Align the slit of the sliding yoke with the alignment mark (←).
      5. Install the steering actuator assembly with the white paint on the surface of the spiral case facing downward.

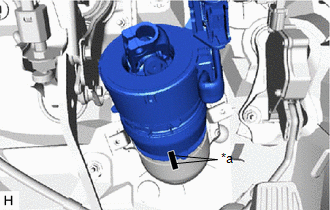

      6. Align the matchmarks on the steering actuator assembly and the No. 1 steering column hole cover sub-assembly.
        NOTE:

        Do not turn the actuator body or spiral case.

        GTY496628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Matchmark
    3. Tighten the clamp.

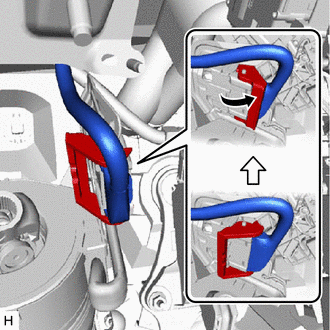

    4. Connect the connector to the steering actuator assembly and move the lock as shown in the illustration.
      GTY516762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. If installing a new steering actuator assembly:
      1. Pull out the center lock pin.
        GTY457310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Center Lock Pin
      2. Tighten the actuator clamp.

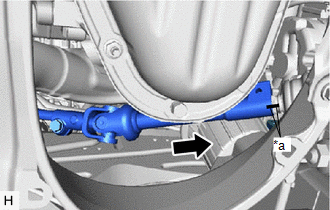

    6. Install the steering sliding yoke sub-assembly to the power steering link assembly.
      GTY496556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
      NOTE:

      Align the matchmarks on the steering sliding yoke sub-assembly and power steering link assembly.

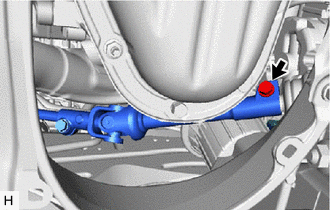

    7. Install the bolt.

      Torque: 35.3 N.m (360 kgf/cm, 26 ft.lbf)

      GTY519104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL LOWER MAIN SHAFT DUST COVER
    1. Install the lower main shaft dust cover with the 2 bolts.

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  5. INSTALL STEERING COLUMN ASSEMBLY

    Refer to PROCEDURE - Step 6

  6. PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION

    Refer to CALIBRATION [09/2014 - 09/2020] , or refer to CALIBRATION [09/2020 - ]
