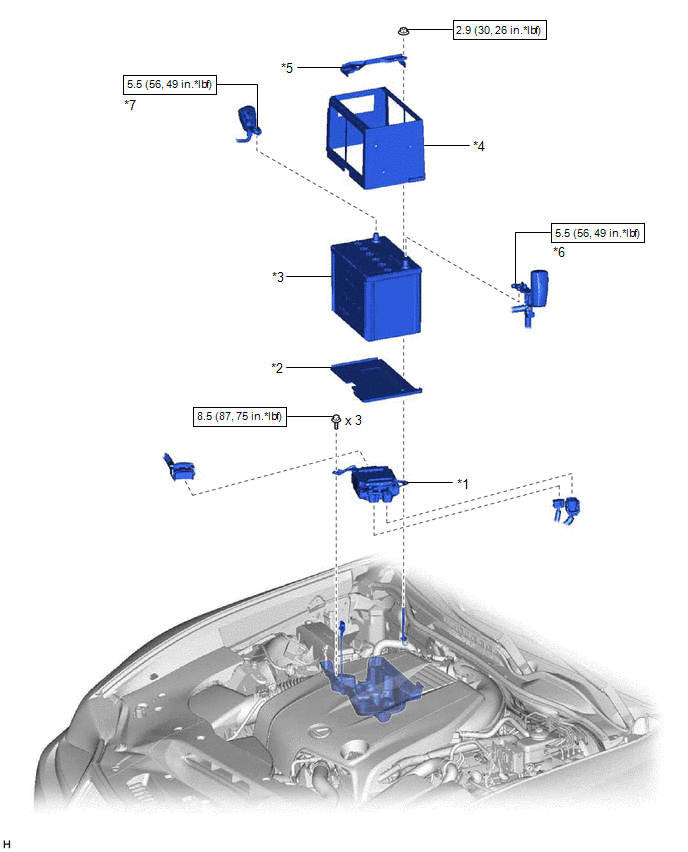

Components [09/2014 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | POWER STEERING ECU ASSEMBLY | *2 | NO. 1 BATTERY TRAY SUPPORT |
| *3 | BATTERY | *4 | BATTERY INSULATOR |
| *5 | BATTERY CLAMP | *6 | POSITIVE BATTERY TERMINAL |
| *7 | NEGATIVE BATTERY TERMINAL | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
