Parts Location [10/2018 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2024 Lexus RC 350, 2024 Lexus RC 300, 2023 Lexus RC 350, 2023 Lexus RC 300, and 2022 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

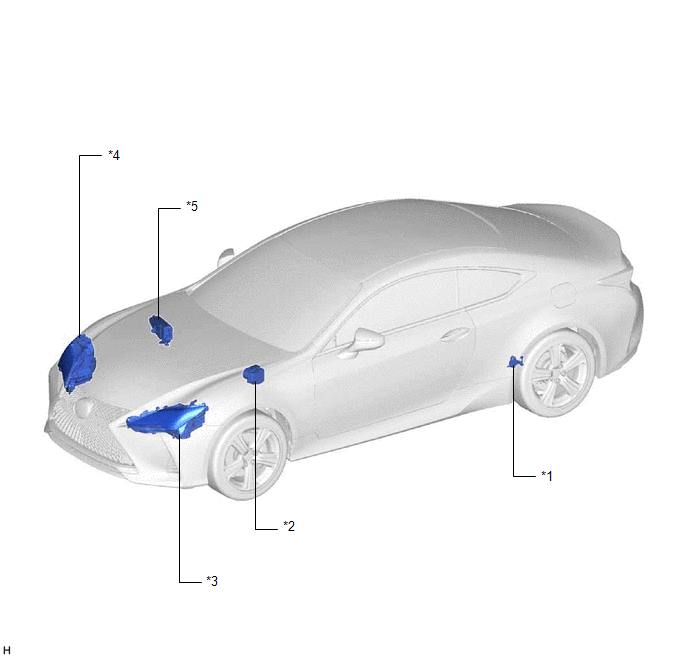

GTY809113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH *2 BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)
*3 HEADLIGHT ASSEMBLY LH
- NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH
- HEADLIGHT UNIT LH		 *4 HEADLIGHT ASSEMBLY RH
- NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH
- HEADLIGHT UNIT RH
*5 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- H-LP LH RELAY
- H-LP RH RELAY
- H-LP MAIN LH FUSE
- H-LP MAIN RH FUSE		 - -

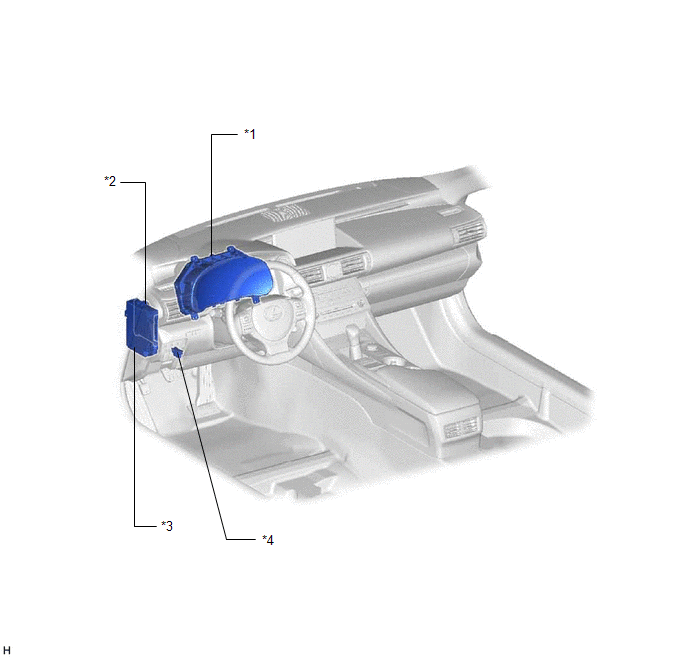

GTY506317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 2 FUSE		 *4 DLC3
