Wiper System / Washer System - Service Information
>>
Wiper Switch
>>
Components [09/2014 - ]
Components [09/2014 - ]

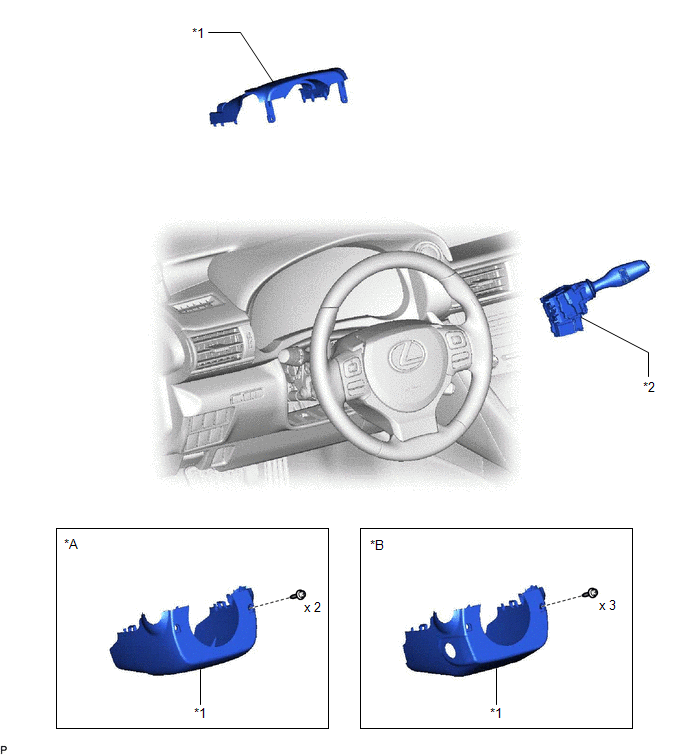

Fig 1: Wiper Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*A
for Manual Tilt and Manual Telescopic Steering Column
*B
for Power Tilt and Power Telescopic Steering Column
*1
STEERING COLUMN COVER
*2
WINDSHIELD WIPER SWITCH ASSEMBLY
