Installation [09/2014 - 10/2015]: Procedure

  1. INSTALL WASHER NOZZLE SUB-ASSEMBLY
    1. Connect a new washer nozzle sub-assembly to the washer hose.
    2. Engage the 2 claws as indicated by the arrows, in the order shown in the illustration to install the washer nozzle sub-assembly.

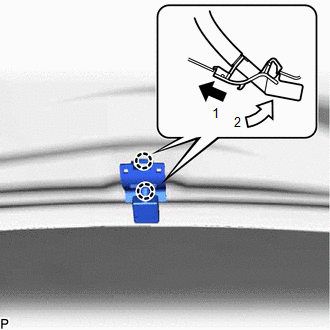

      Fig 1: Washer Nozzle Sub-Assembly Claw Disengagement Sequence
      GTY513813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT WASHER NOZZLE SUB-ASSEMBLY

    See step  1

  3. ADJUST WASHER NOZZLE SUB-ASSEMBLY

    See step  2
