Components [09/2014 - ]

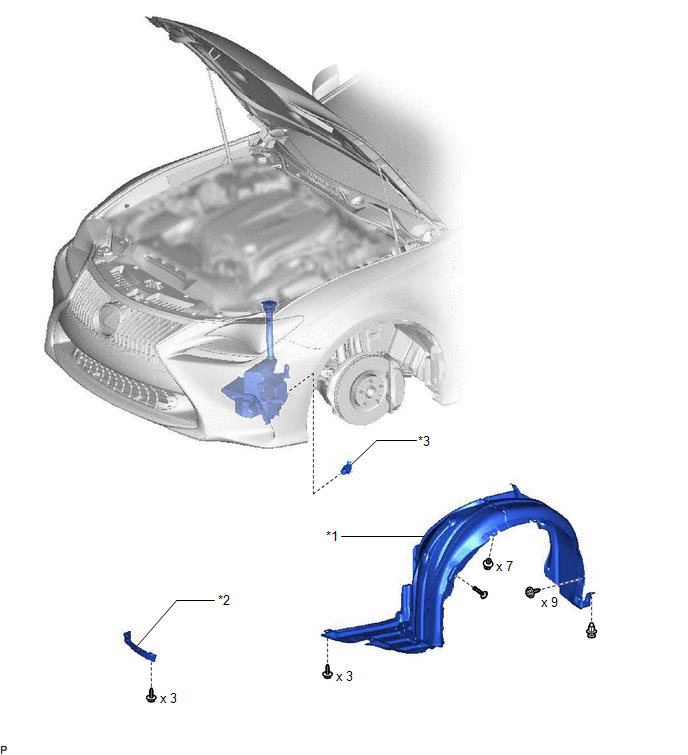

Fig 1: Washer Motor Replacement Components
GTY507181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FENDER LINER LH *2 FRONT WHEEL OPENING EXTENSION PAD LH
*3 WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY - -
