Removal [09/2014 - ]: Procedure

  1. REMOVE FRONT WHEEL LH

    Refer to PROCEDURE - Step 1 [09/2014 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    See step  2

  3. REMOVE FRONT FENDER LINER LH

    See step  3

  4. DRAIN WINDSHIELD WASHER FLUID

    See step  4

  5. REMOVE LEVEL WARNING SWITCH ASSEMBLY

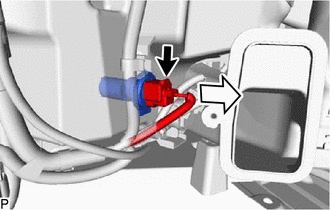

    1. Disconnect the connector.
      GTY519656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the level warning switch assembly as shown in the illustration.
