Installation [09/2014 - ]: Procedure

  1. INSTALL LEVEL WARNING SWITCH ASSEMBLY
    1. Install the level warning switch assembly as shown in the illustration.

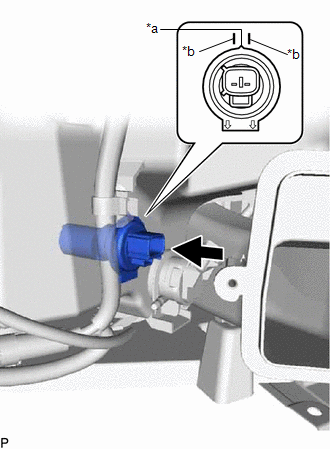

      GTY497338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion
      *b Marking
      NOTE:

      Make sure that the protrusion of the level warning switch assembly is between the 2 markings.

    2. Connect the connector.

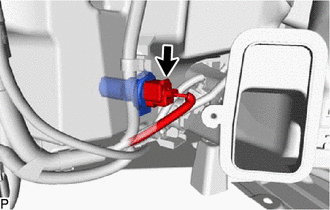

      GTY507321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the washer hose.

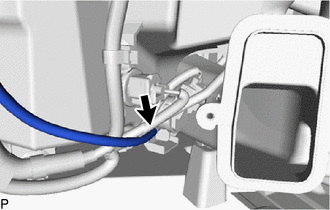

      GTY507314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ADD WINDSHIELD WASHER FLUID

    See step  2

  3. INSTALL FRONT FENDER LINER LH

    See step  3

  4. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    See step  4

  5. INSTALL FRONT WHEEL LH

    Refer to PROCEDURE - Step 1 [09/2014 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]
