Components [11/2017 - ]

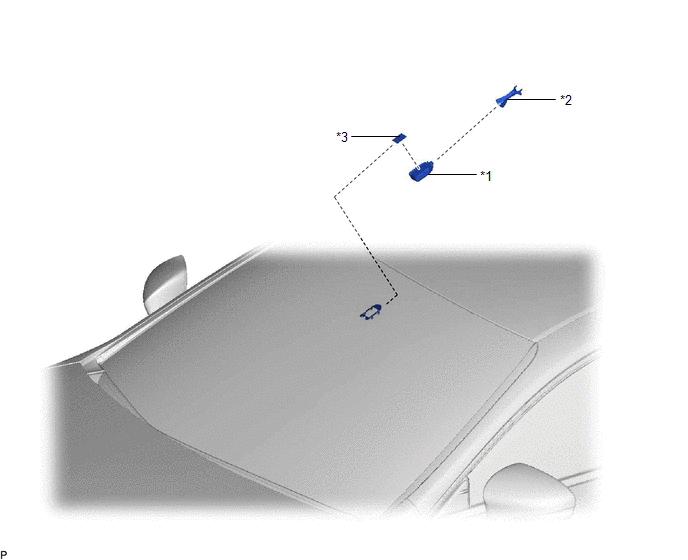

Fig 1: Rain Sensor Replacement Components [11/2017 - ]
GTY802258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 RAIN SENSOR *2 RAIN SENSOR COVER
*3 RAIN SENSOR TAPE - -
