Components [09/2014 - 11/2017]

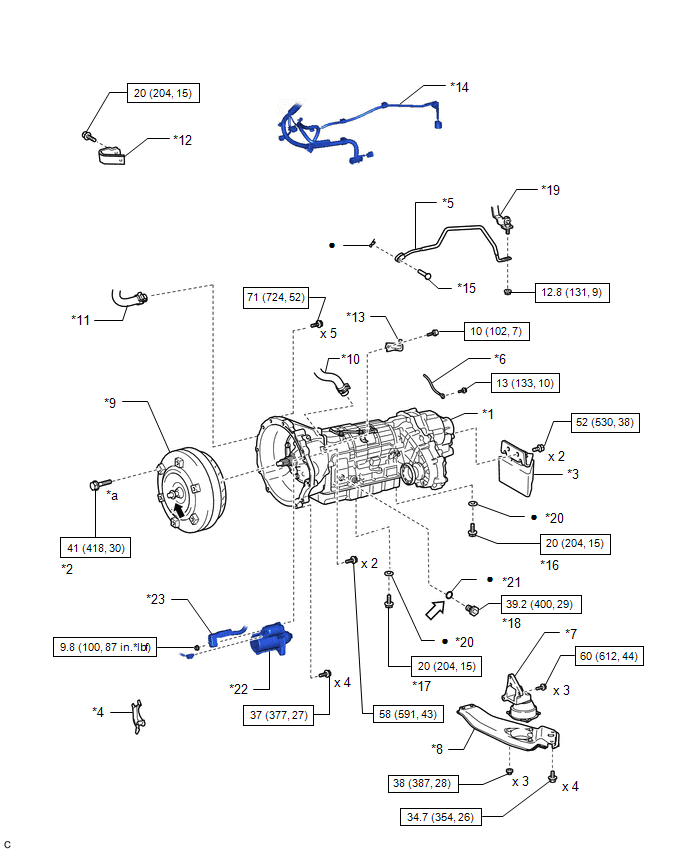

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications [09/2014 - 11/2017]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY | *2 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
| *3 | TRANSFER DYNAMIC DAMPER | *4 | FLYWHEEL HOUSING SIDE COVER |
| *5 | FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY | *6 | NO. 2 EARTH WIRE |
| *7 | REAR ENGINE MOUNTING INSULATOR ASSEMBLY | *8 | REAR ENGINE MOUNTING MEMBER |
| *9 | TORQUE CONVERTER ASSEMBLY | *10 | WATER BY-PASS HOSE |
| *11 | NO. 2 WATER BY-PASS HOSE | *12 | HOSE CLAMP |
| *13 | WIRE HARNESS CLAMP BRACKET | *14 | WIRE HARNESS |
| *15 | PIN | *16 | DRAIN PLUG |
| *17 | OVERFLOW PLUG | *18 | REFILL PLUG |
| *19 | LEVER | *20 | GASKET |
| *21 | O-RING | *22 | STARTER ASSEMBLY |
| *23 | TERMINAL CAP | - | - |
| *a | Black: x 1 Silver: x 5 |
- | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Clutch spline grease | Toyota Genuine ATF WS |
