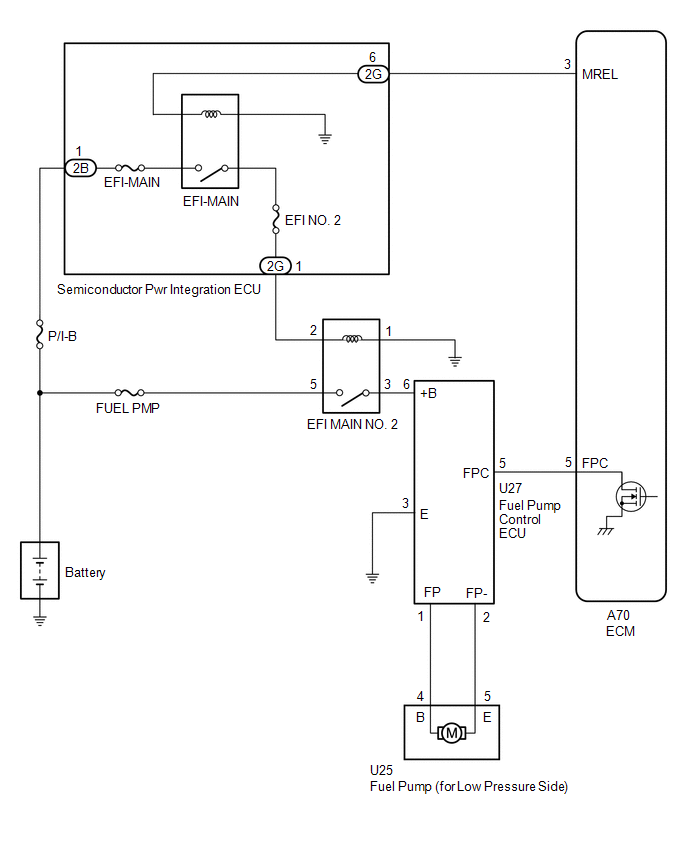

Fuel Pump Control Circuit [09/2014 - 10/2015]: Wiring Diagram

GTY505005

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
