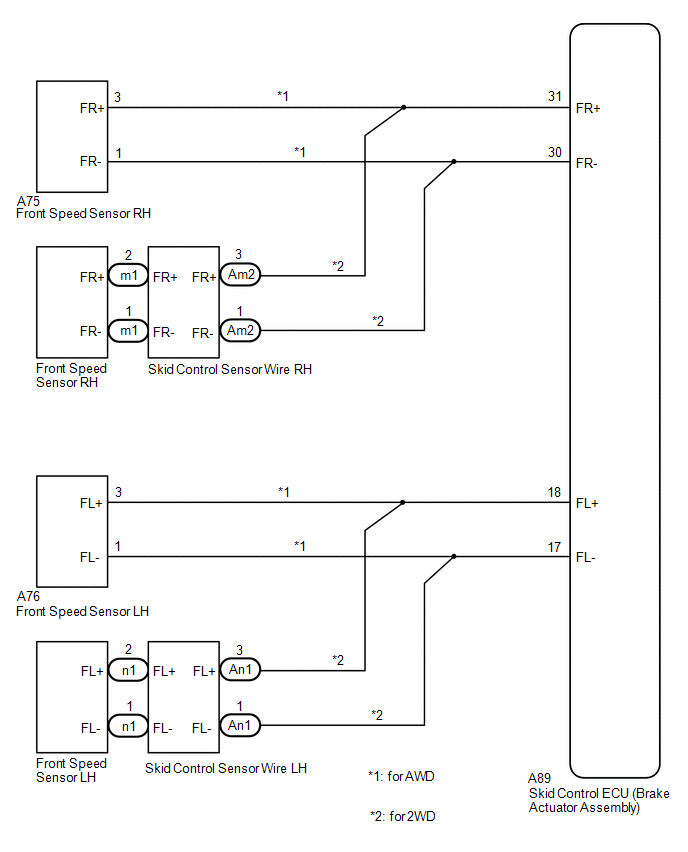

DTC C1413: Front Speed Sensor RH Circuit Output; DTC C1414: Front Speed Sensor LH Circuit Output [11/2017 - 09/2020]: Wiring Diagram

GTY775911

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
