System Diagram [09/2014 - 09/2020]

  1. Wireless Door Lock Control System

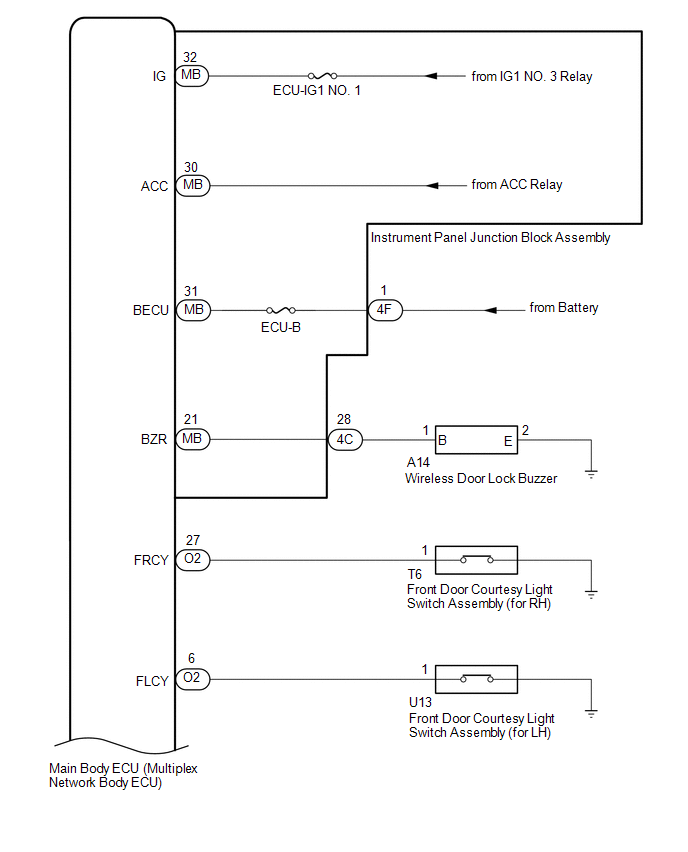

    GTY507939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

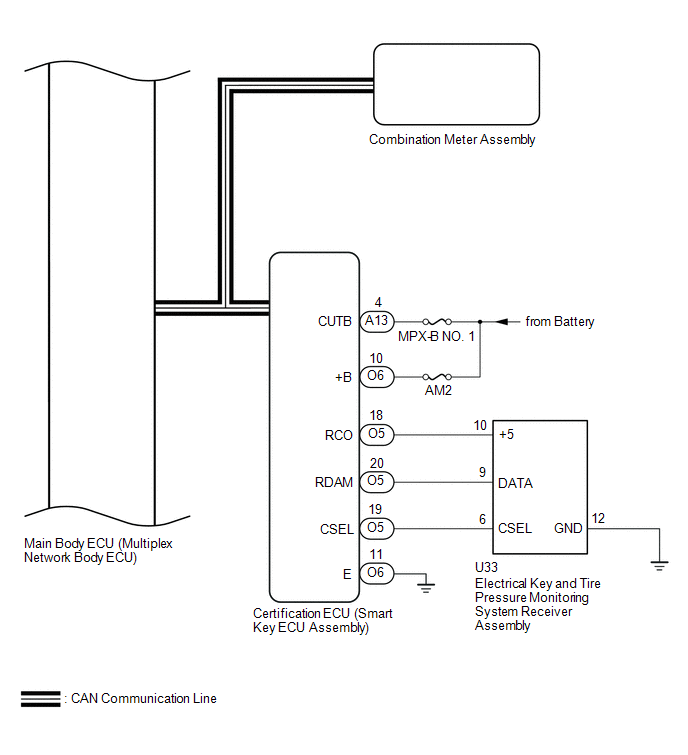

    GTY514699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

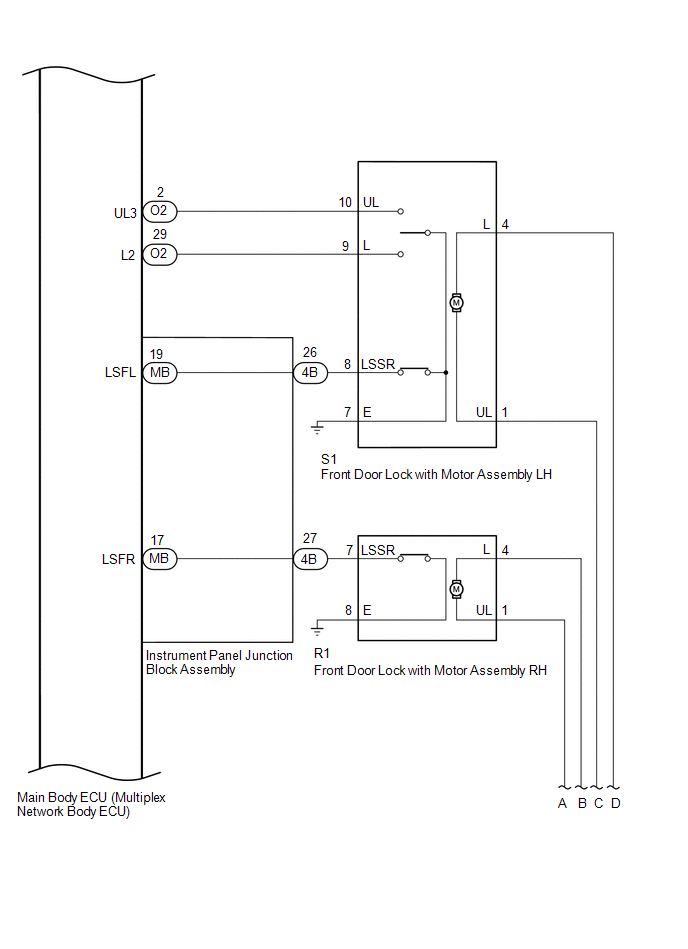

    GTY501405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

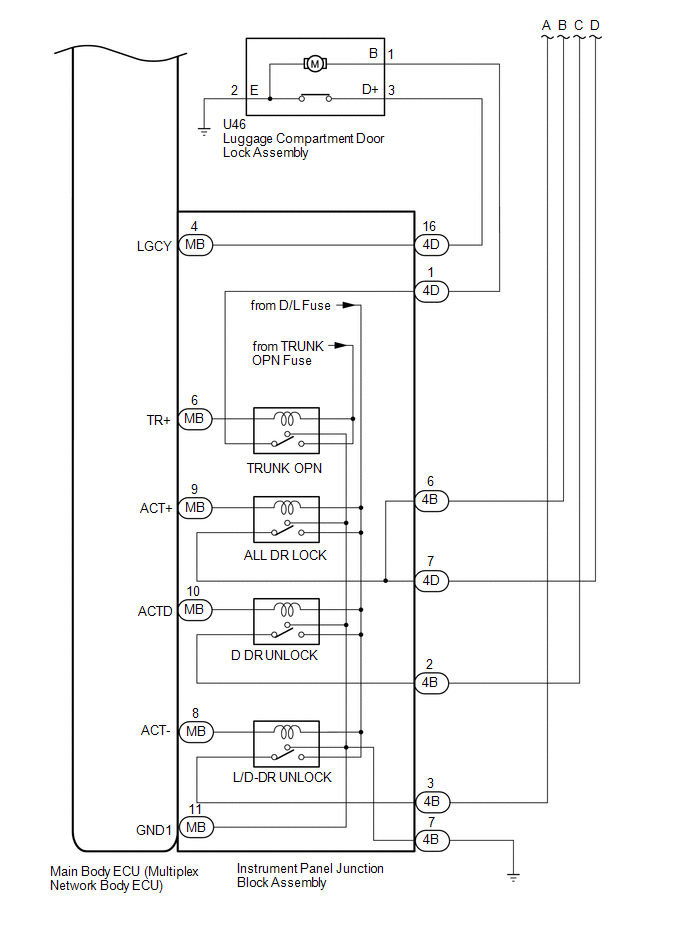

    GTY495890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    COMMUNICATION TABLE

    Sender Receiver Signal Line
    Certification ECU
    (Smart Key ECU Assembly)    		 Main Body ECU
    (Multiplex Network Body ECU)
    • Wireless door lock/unlock signal
    • Wireless door lock buzzer sound request signal
    		 CAN
    Main Body ECU
    (Multiplex Network Body ECU)    		 Combination Meter Assembly Wireless door lock hazard warning light request signal CAN
