Navigation System - Diagnostics - Introduction (1 Of 4)
>>
Navigation System
>>

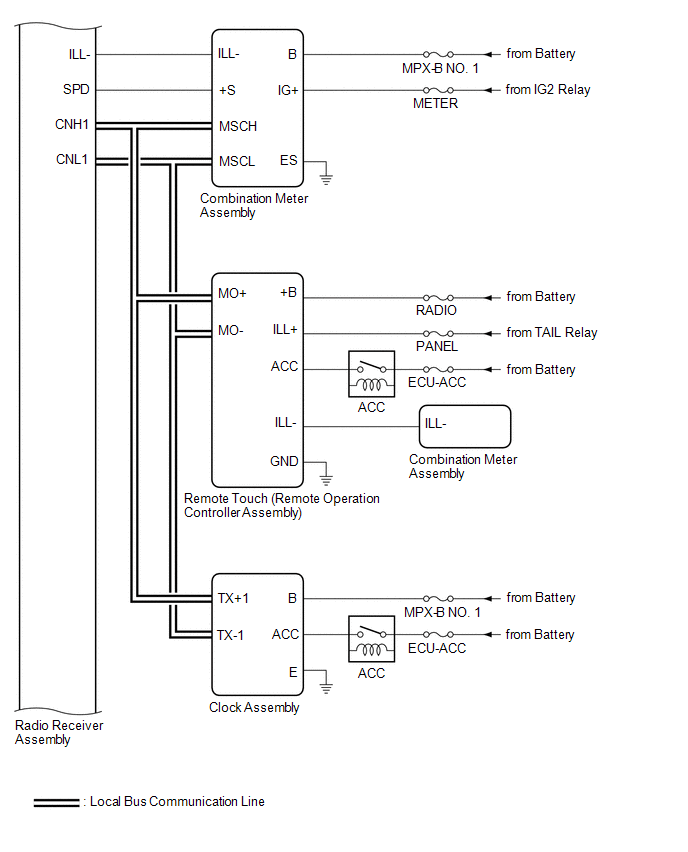

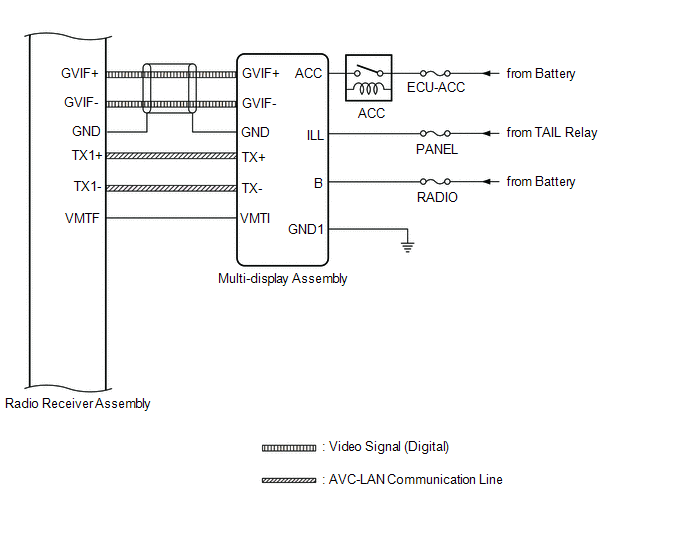

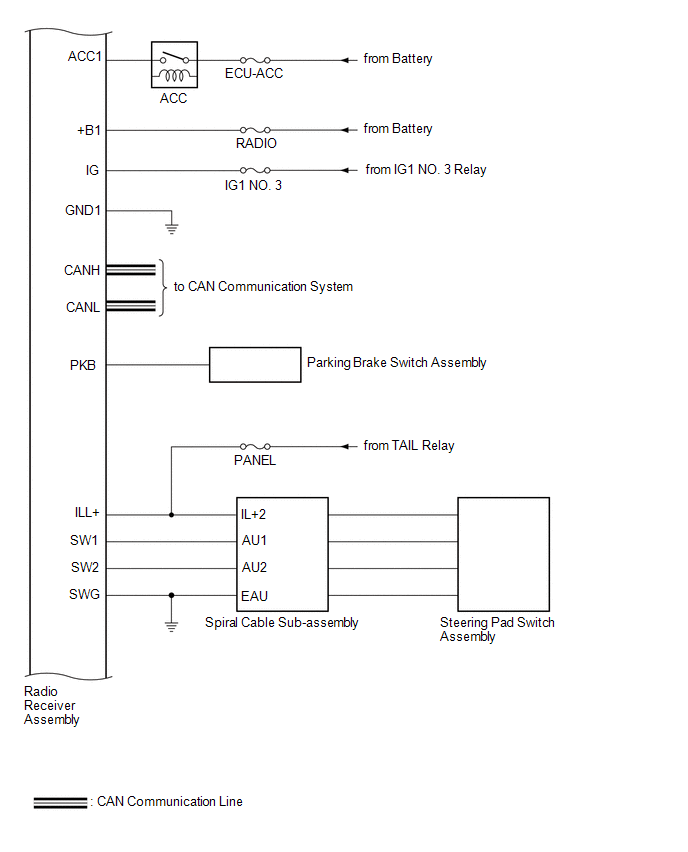

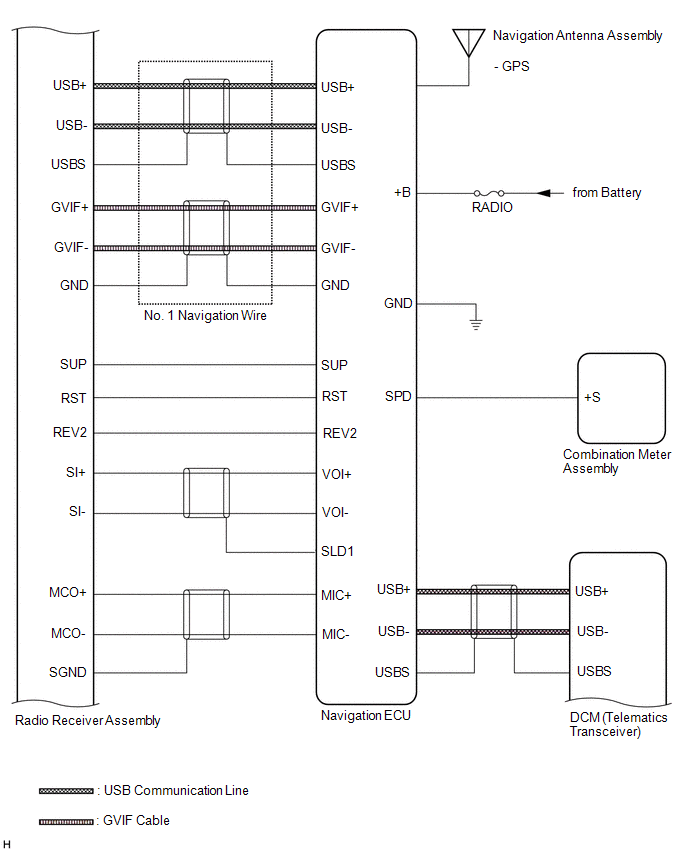

System Diagram [10/2018 - 11/2019]
>>
System Diagram [10/2018 - 11/2019]
System Diagram [10/2018 - 11/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ Manual (SOS) Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/o Manual (SOS) Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for 10 Speakers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for 17 Speakers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
