Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter [10/2015 - 11/2017]: Wiring Diagram

for 2GR-FSE

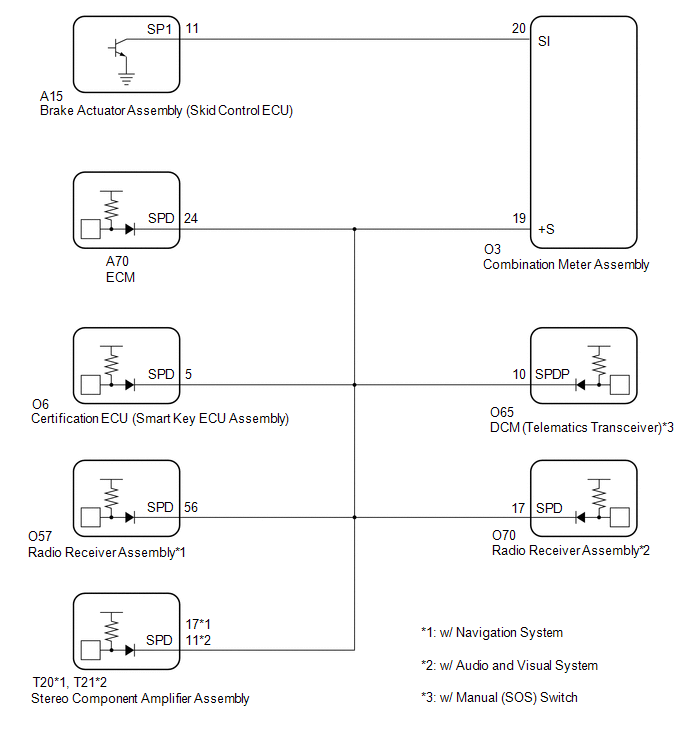

GTY507375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 8AR-FTS

GTY616405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
