Radio Receiver Power Source Circuit [11/2017 - ]: Wiring Diagram

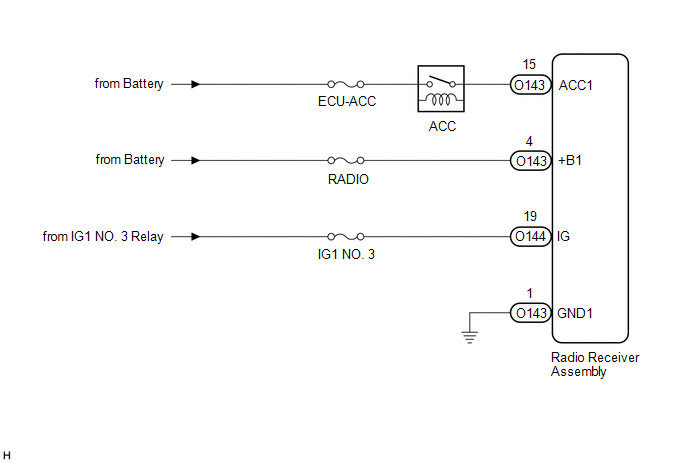

GTY791734

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
