System Diagram [11/2019 - 09/2020]

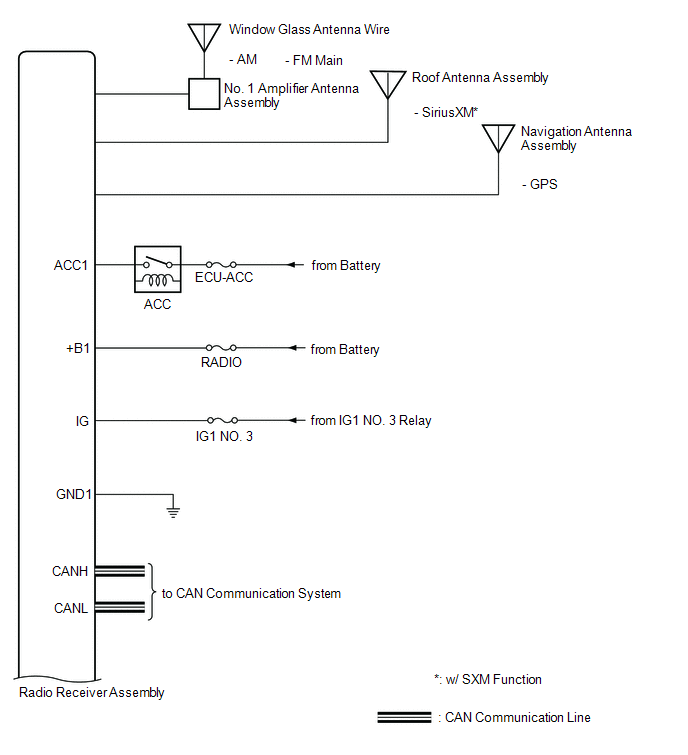

GTY812615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

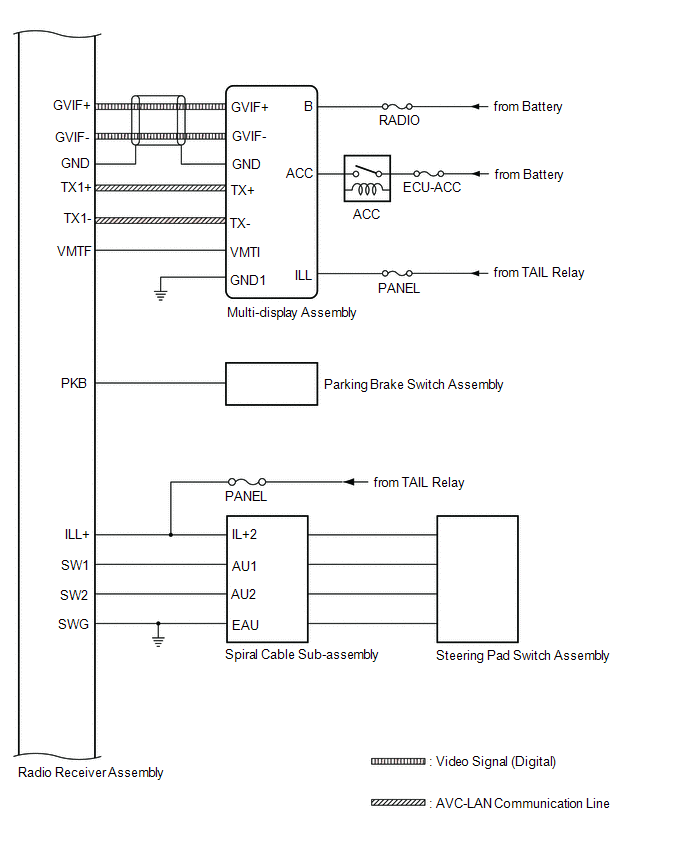

GTY828688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

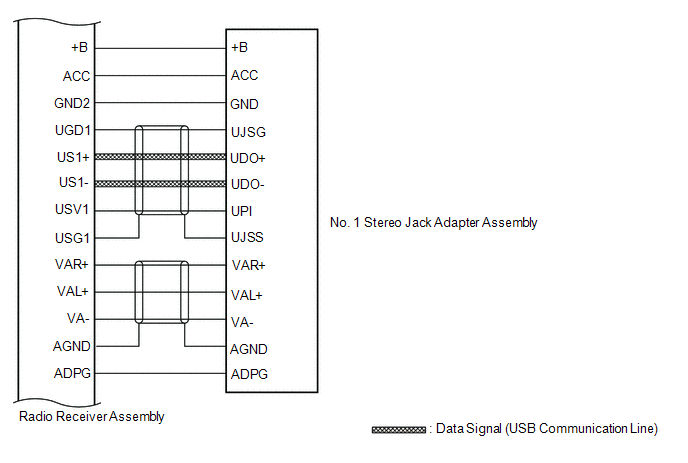

GTY812788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

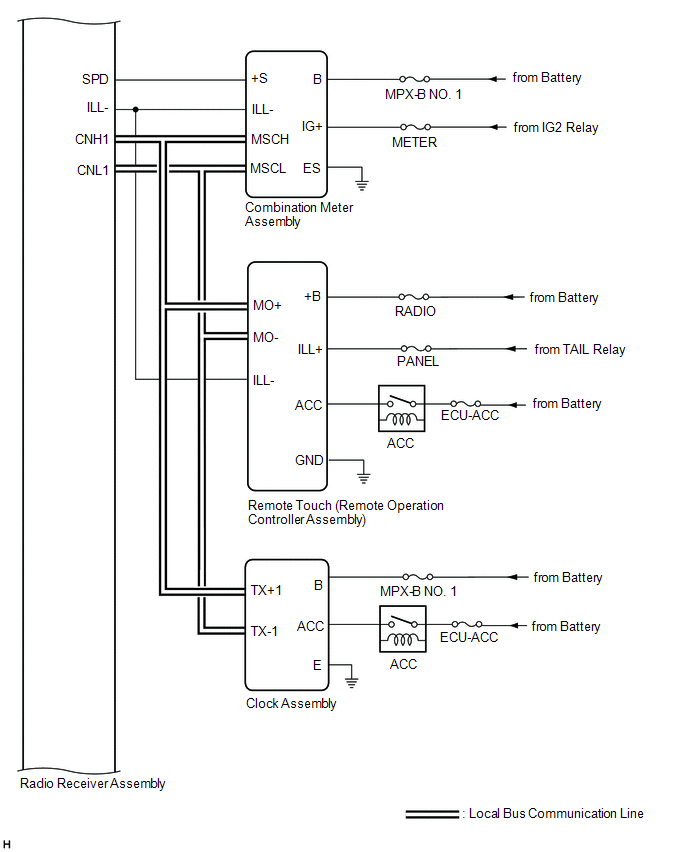

GTY814704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

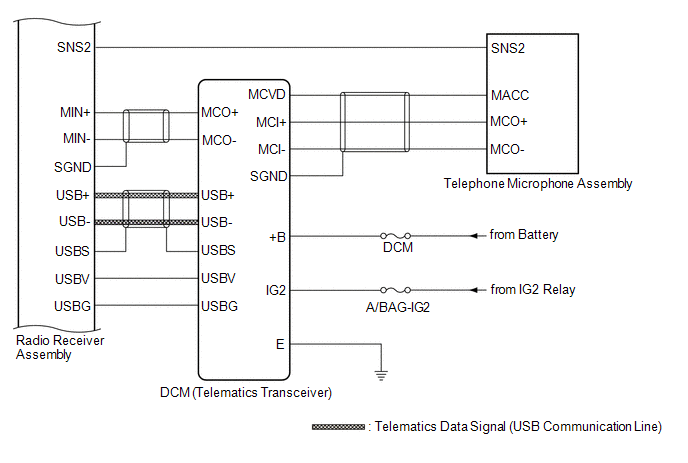

w/ Manual (SOS) Switch

GTY962020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Manual (SOS) Switch

GTY818831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

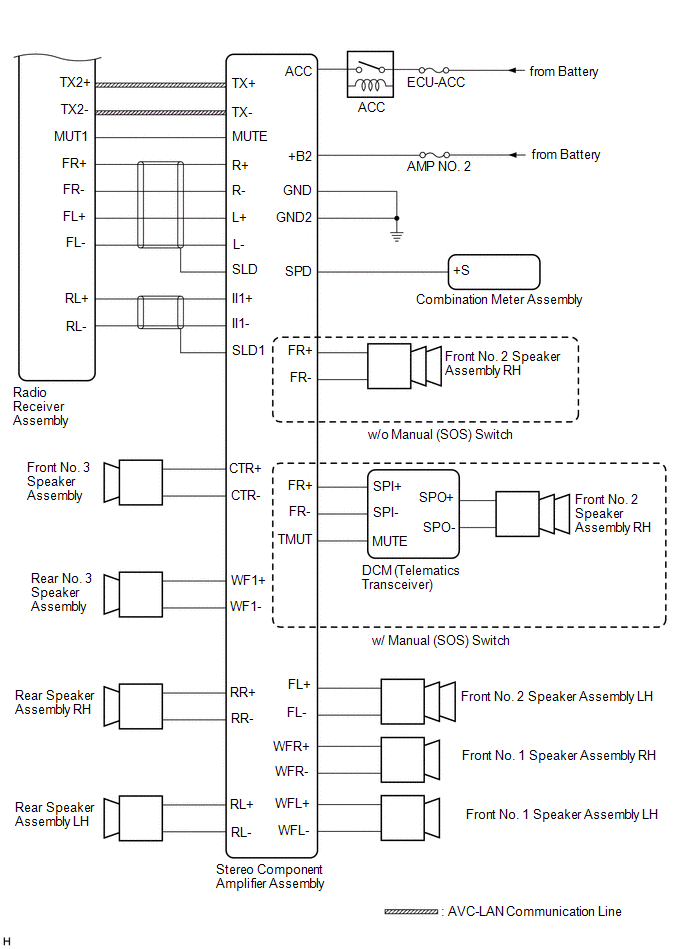

for 10 Speakers

GTY781595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

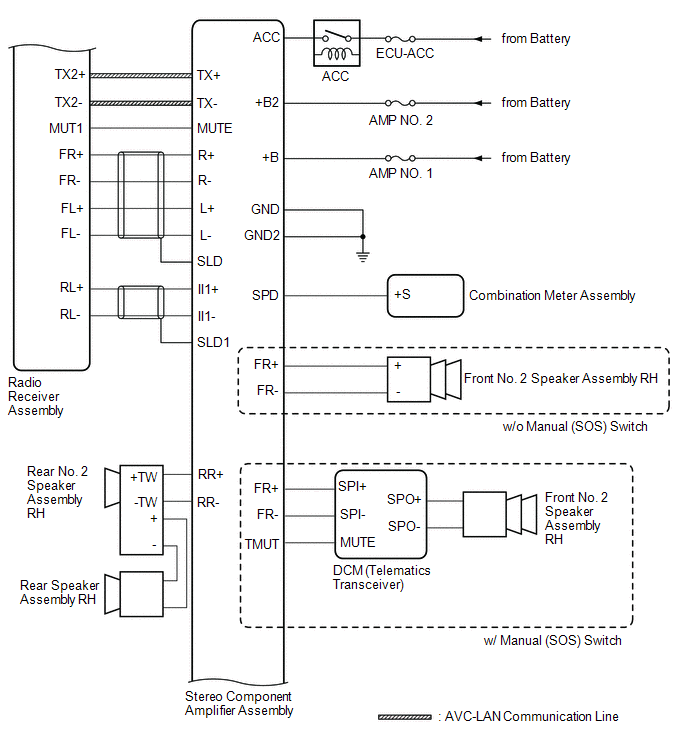

for 17 Speakers

GTY962524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY815770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
