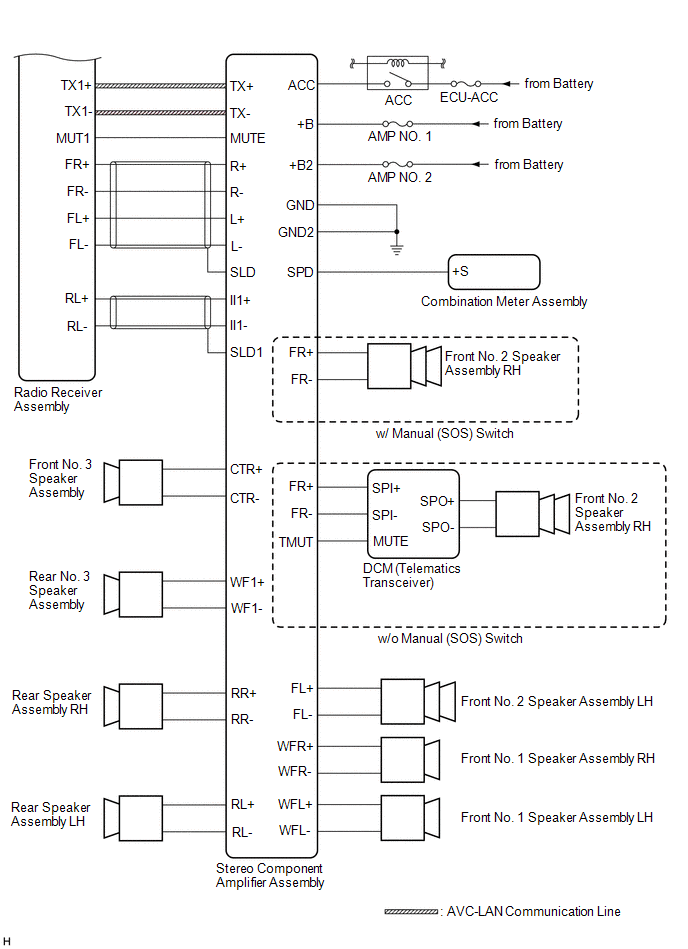

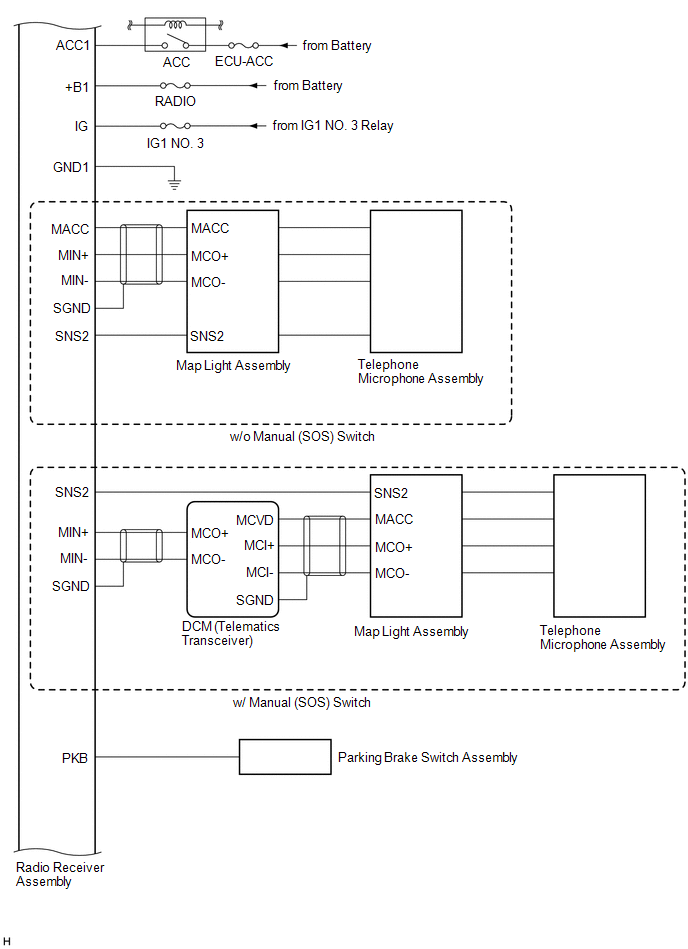

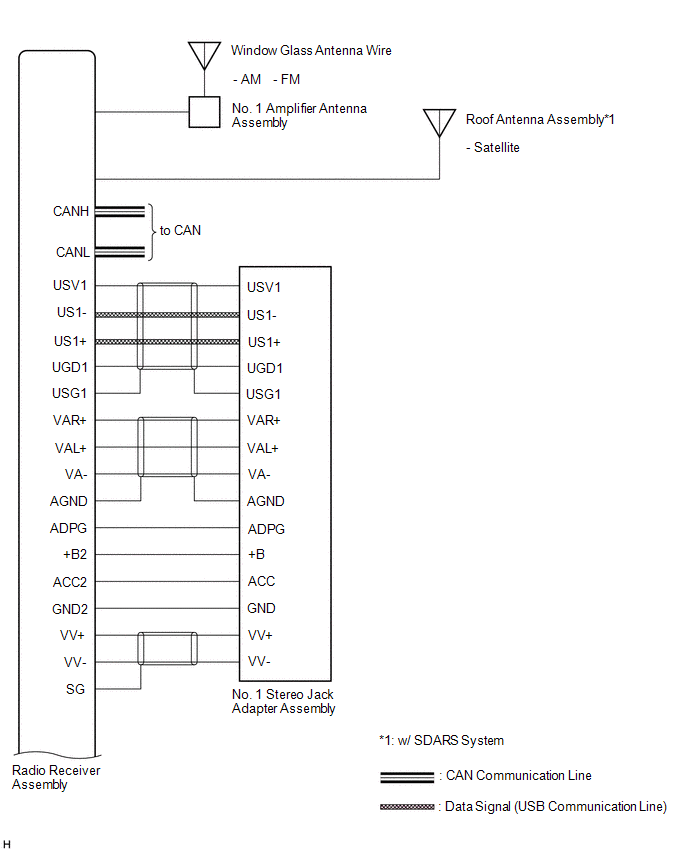

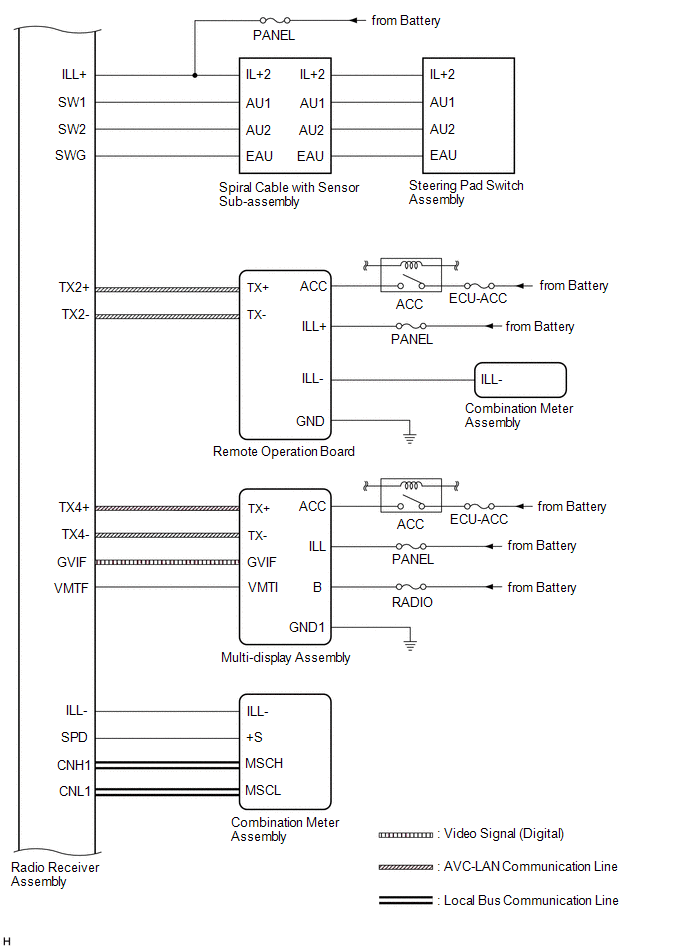

Home >> Lexus >> 2017 >> RC 350 Base, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Audio / Video System - Diagnostics - Introduction (1 Of 4) >> Audio And Visual System >> System Diagram [09/2014 - 11/2017] >> System Diagram [09/2014 - 11/2017]
