Components [09/2014 - ]

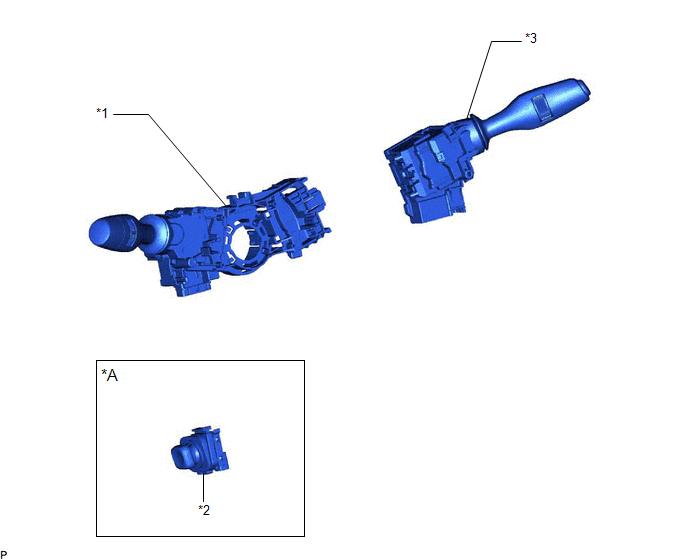

Fig 1: Headlight Dimmer Switch Replacement Components
GTY521707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Power Tilt and Power Telescopic Steering Column - -
*1 HEADLIGHT DIMMER SWITCH ASSEMBLY *2 TILT AND TELESCOPIC SWITCH
*3 WINDSHIELD WIPER SWITCH ASSEMBLY - -
