Components [09/2014 - 10/2018]

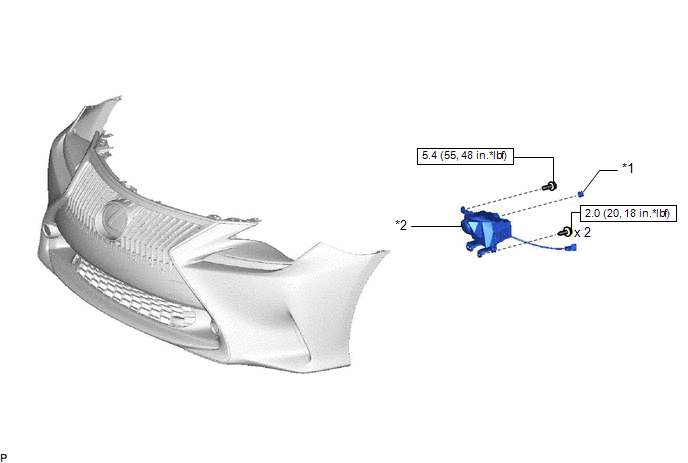

Fig 1: Fog Light Assembly Replacement Components With Torque Specifications [09/2014 - 10/2018]
GTY517631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAP ASSEMBLY *2 FOG LIGHT ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -
