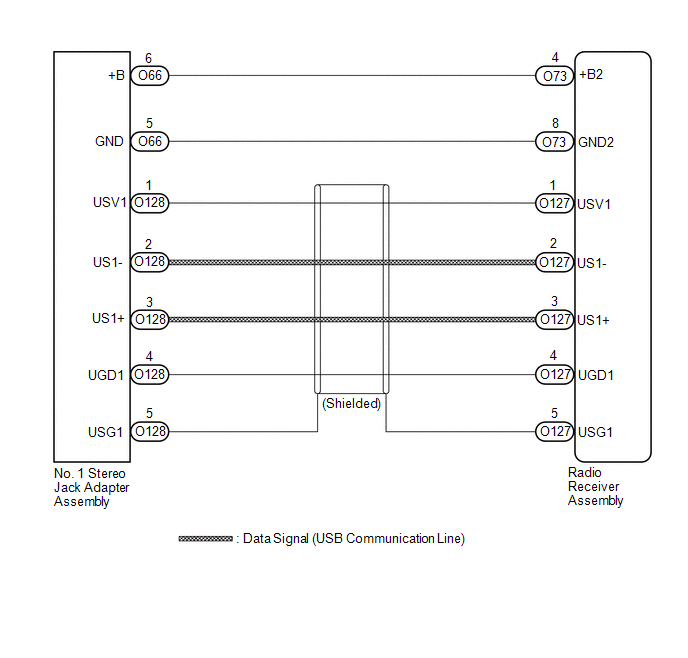

USB Audio System Recognition/Play Error [09/2014 - 11/2017]: Wiring Diagram

GTY503962

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
