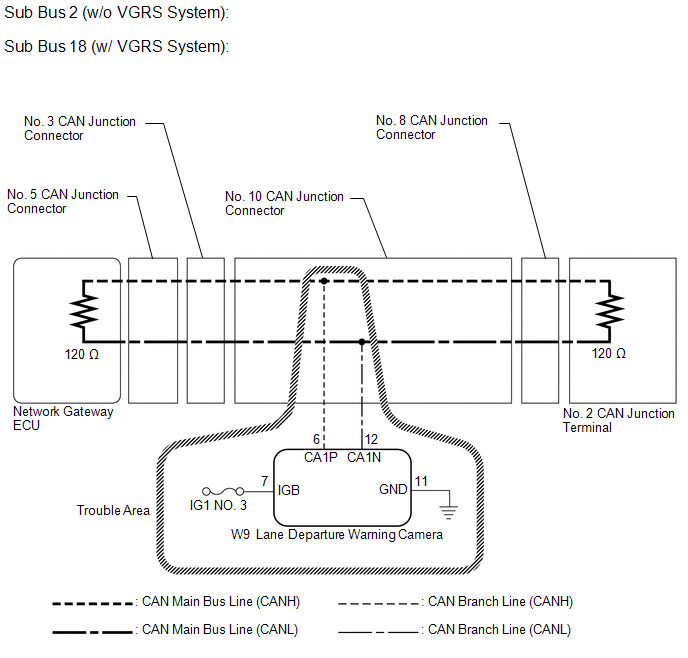

DTC U023A: Lost Communication with Front Camera Module [09/2014 - 11/2017]: Wiring Diagram

GTY613580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
