DTC U0233: Lost Communication with Blind Spot Monitor Master Module [09/2014 - 11/2017]: Procedure

Body Electrical > Gateway > Trouble Codes

1. Reconfirm DTCs.

   HINT:

   If DTC U1002 is output from Gateway of the network gateway ECU, this indicates a sub bus 2 (w/o VGRS System) or sub bus 18 (w/ VGRS System) malfunction. Troubleshoot for DTC U1002 and check for malfunctions in sub bus 2 (w/o VGRS System) or sub bus 18 (w/ VGRS System).

   Result

   Result	Proceed to
   DTC U1002 is not output from network gateway ECU (Techstream display: Gateway)	A
   DTC U1002 is output from network gateway ECU (Techstream display: Gateway)	B

Result:

B

GO TO DIAGNOSTIC PROCEDURE INDICATED BY OUTPUT DTC. Refer to  DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [09/2014 - 10/2015]  , or refer to  DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [10/2015 - 08/2016]  , or refer to  DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [08/2016 - 11/2017]

Result:

A

See step  2

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the U47 blind spot monitor sensor LH connector.

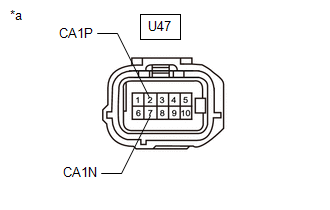

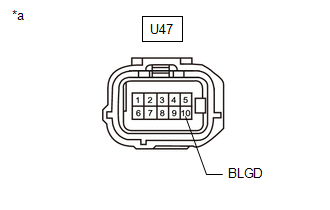

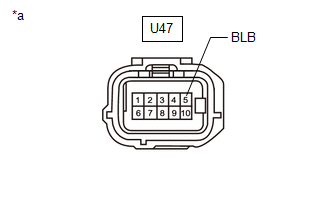

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Blind Spot Monitor Sensor LH)

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   U47-2 (CA1P) - U47-7 (CA1N)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   Result

   Result
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH)

Result:

OK

See step  3

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Blind Spot Monitor Sensor LH)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   U47-10 (BLGD) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

2. Reconnect the cable to the negative (-) battery terminal.
3. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Blind Spot Monitor Sensor LH)

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   U47-5 (BLB) - Body ground	Engine switch on (IG)	11 to 14 V

   Result

   Result
   OK
   NG

Result:

OK

REPLACE BLIND SPOT MONITOR SENSOR LH. Refer to  REMOVAL [09/2014 - 10/2018]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
