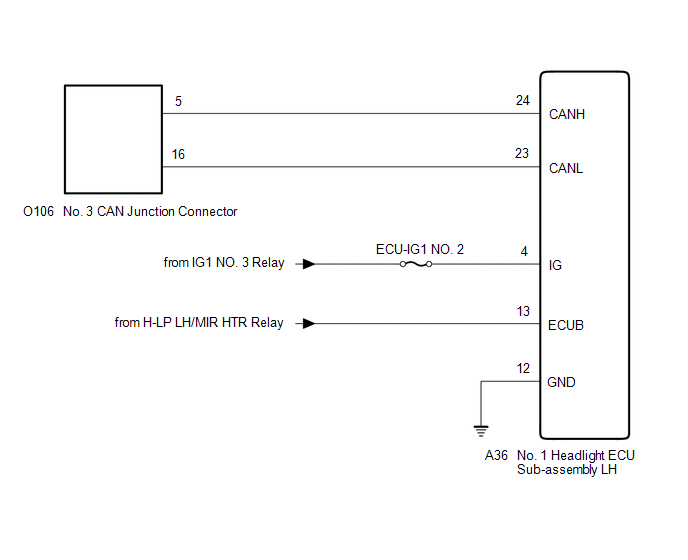

DTC U0182: Lost Communication with Lighting Control Module Front [10/2018 - ]: Wiring Diagram

GTY820321

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
