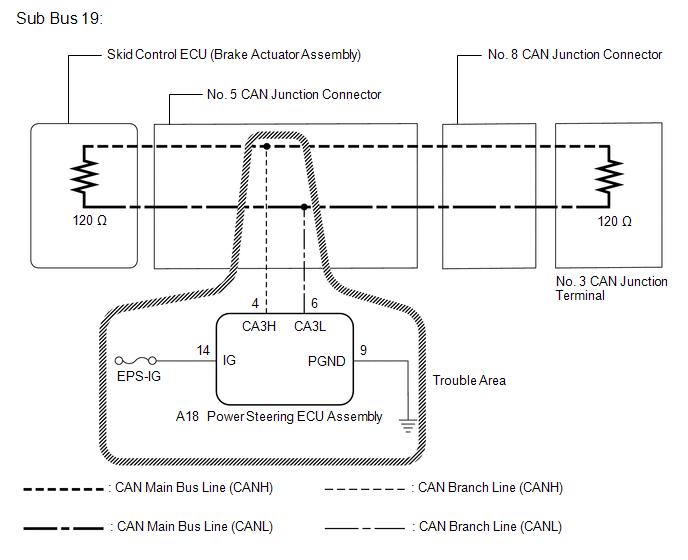

DTC U0131: Lost Communication with Power Steering Control Module [09/2014 - 11/2017]: Wiring Diagram

GTY510761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
